přepínač pro regulaci hlasitosti 100V rozvodu, max. 120 W/100 V, 6 poloh, vyžaduje autotrafo TL 128, 3/4-drát nuc. poslech (24V relé), přepnutí na prioritní kanál, bílý/černý/stříbrný knoflík, bez rámečku

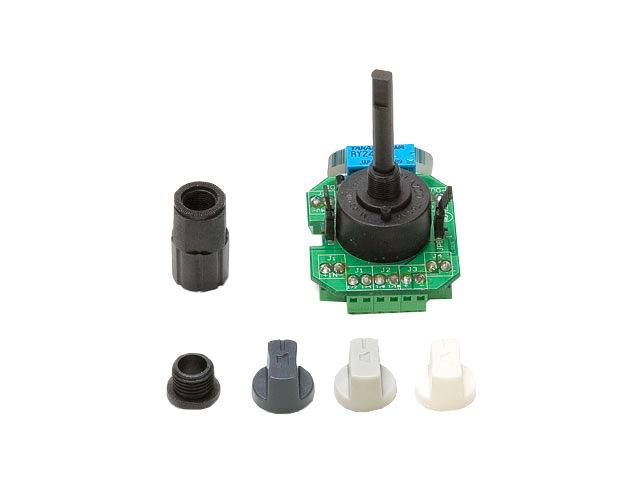

• The 6 position selector CT 61 shall be matched to a RCF TL 128 line transformer, in order to get a volume control for a loudspeaker group having a total power not exceeding 120 W.
• All connected loudspeakers shall have 100 V line matching transformers. It includes a 24 V dc override relay to either bypass the 6 position selector or insert a second 100 V line (not affected by the volume control) for paging. It can works with 3 wire lines as well, in order to make emergency announcements without using the internal 24 V dc relay. CT 61 can be installed on whichever supporting frame for home/office electrical systems by drilling a hole in a blank key and fixing the control circuit.


Features:

• 5 selectable position + OFF volume control
• To be used with TL 128 autotransformer (not included)
• 3 knobs in different colours white, silver, anthracite included
• 24 V dc override relay to bypass the 6 position selector include


General specification:

• Input voltage: 100 V
• Output voltage: 100 V
• Maximum power: 120 W
• Max Depth: 58 / 2.28 mm/inch


Physical specification:

• Height: 50 / 1.96 mm/inch
• Width: 43 / 1.69 mm/inch
• Depth: 68 / 2.67 mm/inch
• Net Weight: 0.04 / 0.08 Kg/Lbs


Shipping information:

• Package height: 120 / 4.72 mm/inch
• Package width: 70 / 2.75 mm/inch
• Package depth: 75 / 2.95 mm/inch
• Shipping Weight: 0.05 / 0.09 Kg/Lbs
