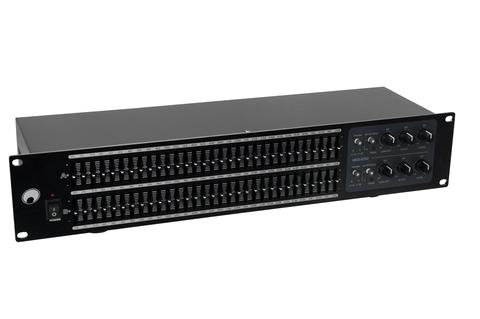

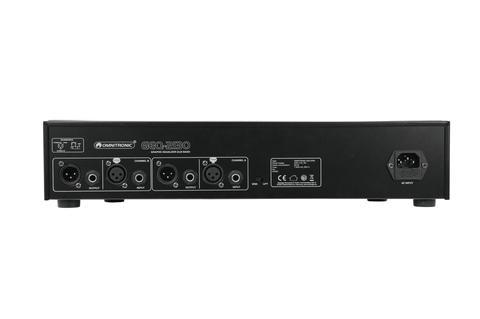

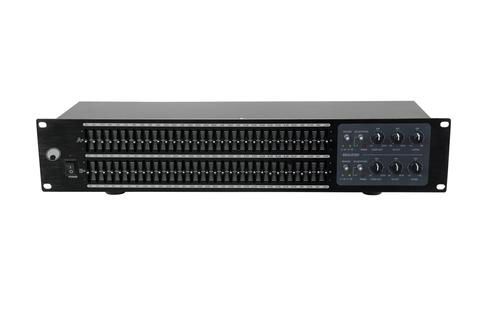

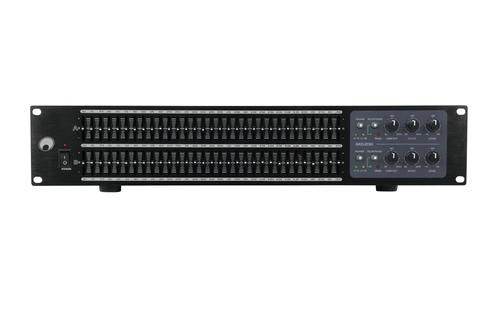

2 x 31-band equalizer2-channel version, 2 x 31 frequency controls with 1/3 octave steps Long sliding frequency controls with center click EQ gain switchable ?6 dB to ?12 dB Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), adjustable Separate level control per channel Bypass switch allows instant comparison of the original sound with the equalized sound Clip indicator Inputs and outputs via 6.3 mm jack sockets and XLR sockets Groundlift switch Rack installation, 2 U Master equalizer: 2 x Graphic equalizer 31-band Housing design: (19'') 48.3 cm rack installation 2 U

Napájení: 230 V AC, 50 Hz
Příkon: 20 W
Vstupní impedance: 10/20 KOhms (unb./bal).
Výstupní impedance: 300/150 KOhms (unb./bal).
In / Out konektory: XLR, jack
S / N poměr:> 95 dB
Crosstalk:> 90 dB
Zkreslení: <0,01%
Frekvenční rozsah: 20-20000 Hz, 0.5 dB
Výstup: -~ to +6 dB
Frekvence: 2 x 20/25/31.5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800
z,
1/1.25/1.6/2/2.5/3.15/4/5/6.3/8/10/12.5/16/20 kHz

Rozměry:483 x 150 x 96 mm
Hmotnost: 2.6 kg
