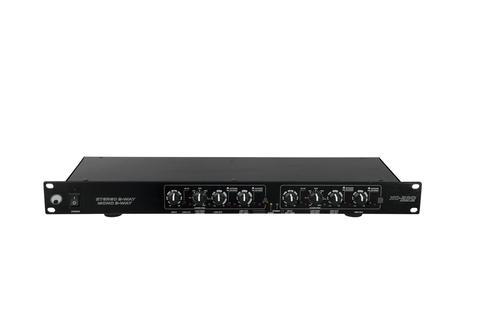

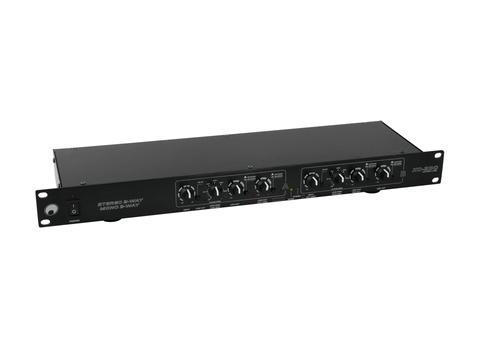

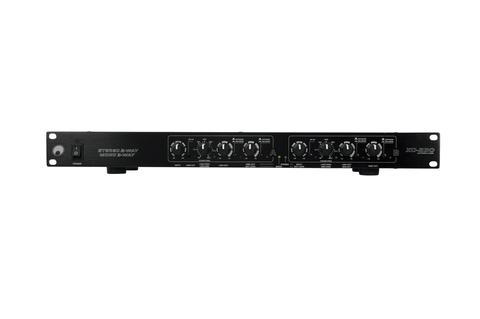

Active crossover, stereo 2-way and mono 3-way operation2-way or 3-way stereo operation Variable 24 dB per octave Linkwitz-Riley filters Crossover frequencies continuously adjustable between 45 Hz and 9.6 kHz Low frequency summed (subwoofer) output Individual output level controls for each frequency range Butterworth low-cut filter (12 dB/octave 40 Hz) to protect subwoofers x10 range switch on both channels Phase reverse switch on all outputs LED indicators for all important functions for easy status identification Balanced XLR inputs and outputs Housing design: (19'') 48.3 cm rack installation 1 U

Napájení: 230 V AC, 50 Hz
Příkon: 20 W
Slope: 24 dB /oktáva
Vstup: Mono/stereo
Vstupní impedance: 10/20 kohms (unb./bal.)
Výstup: Mono/stereo
Výstupní impedance: 300/150 kohms (unb./bal.)

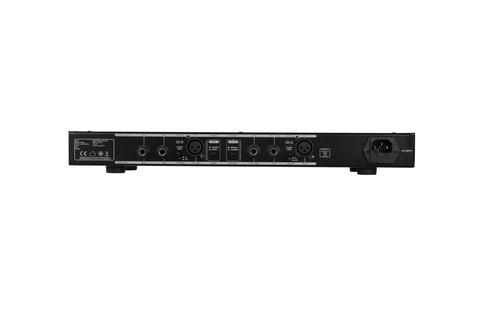

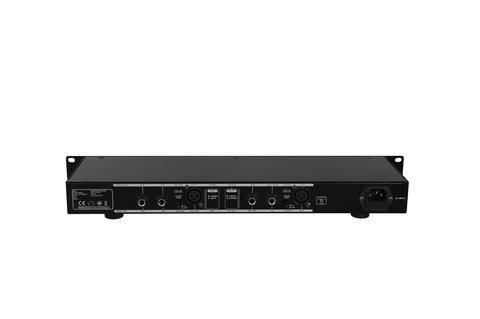

In/out konektory: XLR/6.3 mm jack
THD: 0.05%
Crosstalk: >80 dB, -3 dB
Frekvenční rozsah: 45 Hz - 9.5 kHz
Nastavení fáze: 0-180
Rozměry: 483 x 152 x 48 mm
Váha: 1.8kg
