4 balanced microphone inputs +20V phantom power on priority mic input 3 stereo aux line inputs Can tap from an existing 100V PA system 24Vdc power option

Power supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse: T1AL 250V (mains) or F500mA (24Vdc)
Phantom power: +20Vdc (mic1 XLR input only)
Inputs Mic: 4 x balanced 6.3mm jack (+XLR for mic1)
Inputs Aux: 3 x L+R RCA
Inputs Priority: Line level (6.3mm jack), 100V (terminals)
Outputs: Left + Right 6.3mm jack (unbalanced)

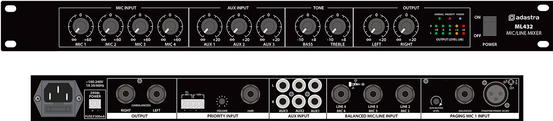

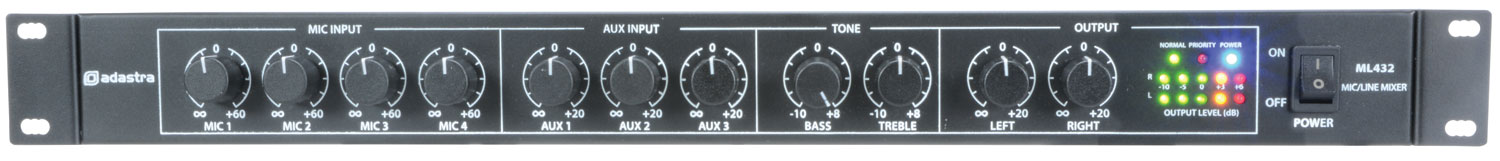

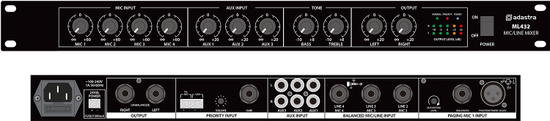

Controls: 4 x Mic level, 3 x Aux level, Treble, Bass, L+R output
Rear panel controls: Aux muting level, priority input level
Input impedance: 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response Mic: 130Hz - 21kHz
Frequency response Line: 120Hz - 26kHz
Frequency response Aux: 50Hz - 35kHz
Input sensitivity Mic: -50dBV
Input sensitivity Line: -19dBV
Input sensitivity Aux: -12dBV
Signal to noise ratio Mic: 54dB
Signal to noise ratio Aux/Line: 58dB
THD: 0.05%
Dimensions: 482 x 130 x 44mm
Weight: 1.43kg
