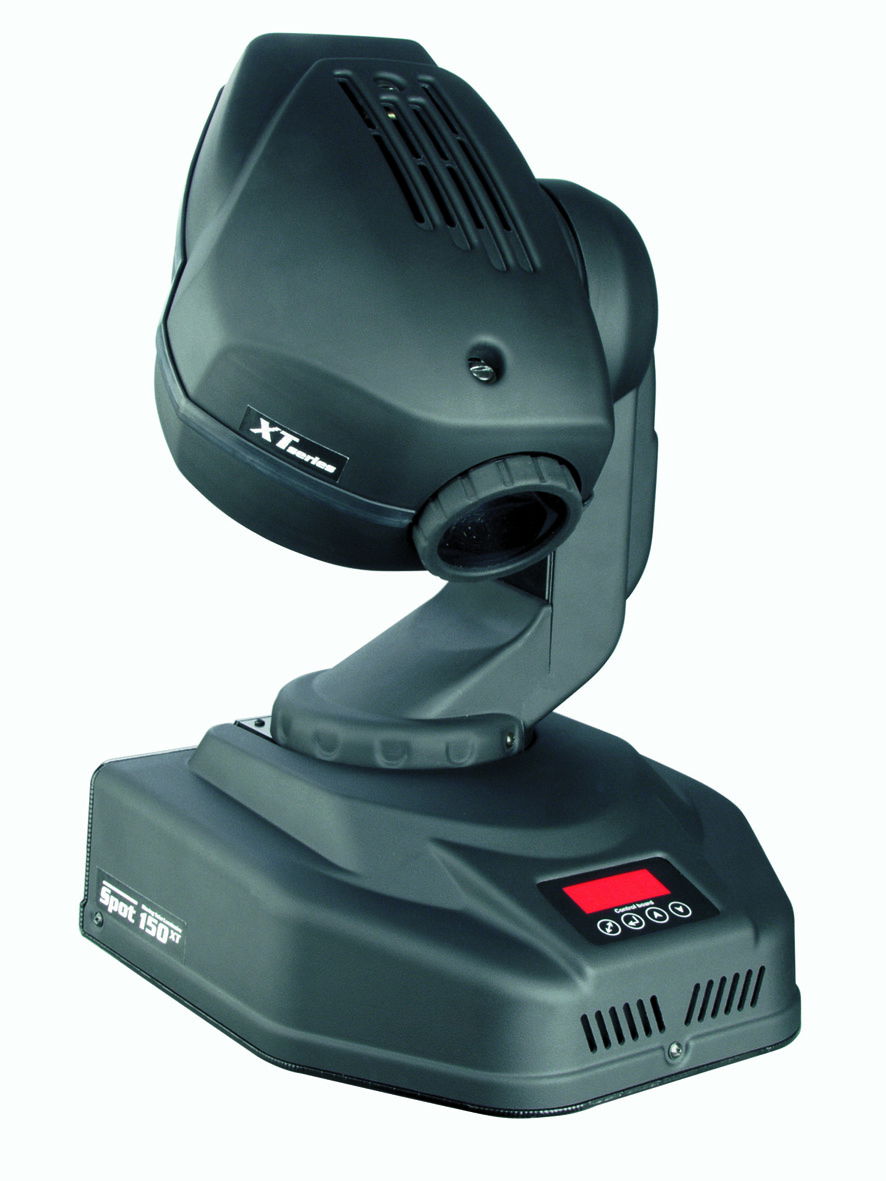

Otočná hlava SPOT, DMX 512, lampa CDM-T 150W, 12x barva, 11x gobo, focus manual 19 st

Source:

- Lamp: Compact discharge lamp
- Base: G-12
- Approved model: Philips CDM-SA/T 150/942
- Ballast: Magnetic

Optical System:

- Objective: 19°

Electrical Specification:

- Wiring options - EU-model: 208/230/240V AC, 50/60Hz
- US model: 100/120/208/230/240V AC,50/60Hz
- Power consumption: 300 VA at 230V/50Hz

Thermal:

- Maximum ambient temperature (Ta): 40°C (104°F)
- Maximum surface temperature: 80°C (176°F)

Gobos:

- Outside diameter: 26.9 mm, aluminium, thickness: 0.5mm

Control and Programming:

- Protocol: USITT DMX-512
- Control channels: 8
- Bilt-in demo sequences
- Display: 4-digit LED display
- Pan/Tilt resolution: 8- or 16-bit
- Master/slave operating
- 4 DMX channel-presettings
- Movement control: Tracking and vector
- Buit-in analyzer for easy fault finding
- Data in/out: Locking 3-pin XLR
- built-in microphone for audio mode

Electromechanical Effects:

- Colour wheel: 11 dichroic filters + open
- Static gobo wheel: 11 metal gobos + open
- Dimmer/Shutter: Full range dimming and variable strobo effect
- Pan: 530°
- Tilt: 280°
- Maximum Pan-movement 530° in 3s
- Maximum Tilt-movement 280° in 1.9s

Rigging:

- via 2 Omega holders

• hmotnost: 16,5
