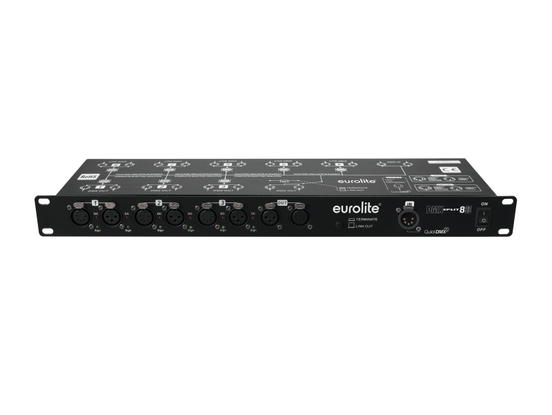

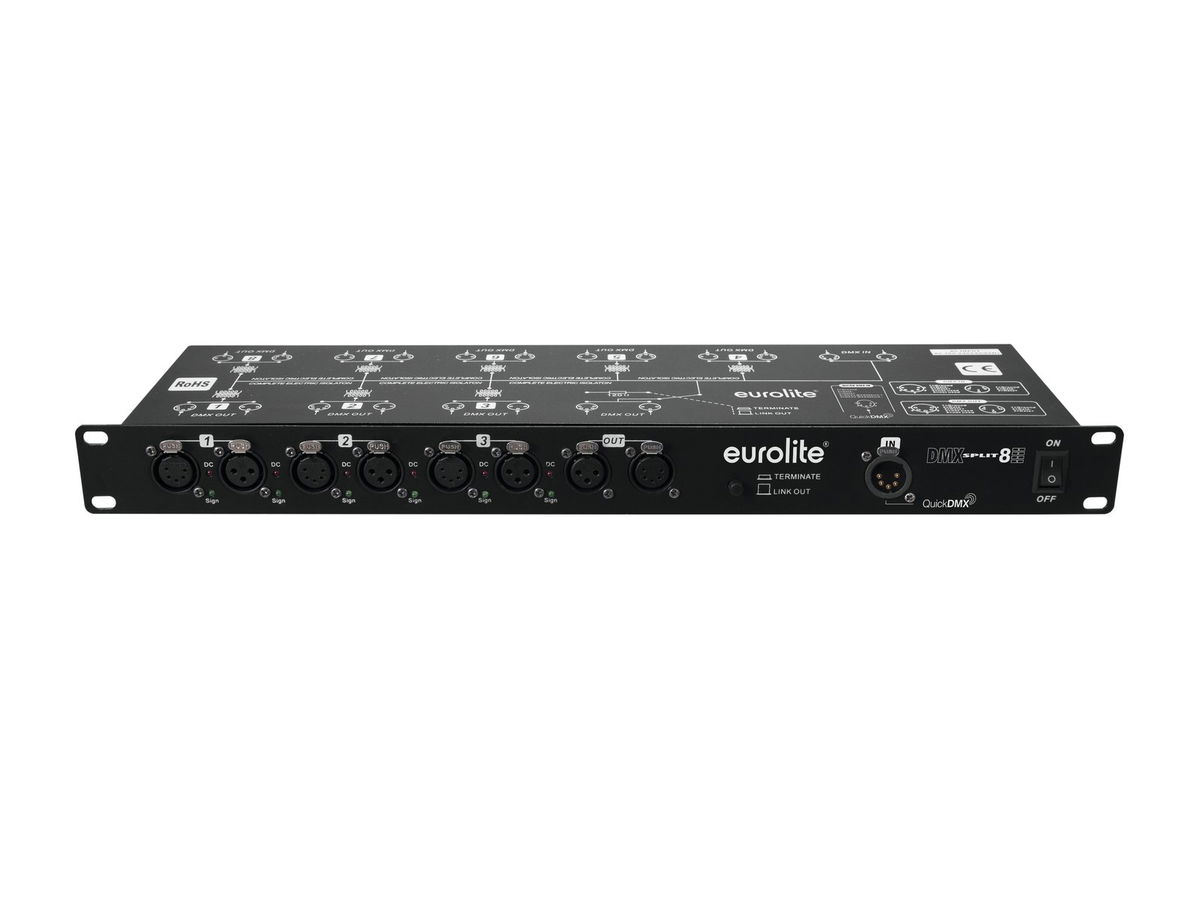

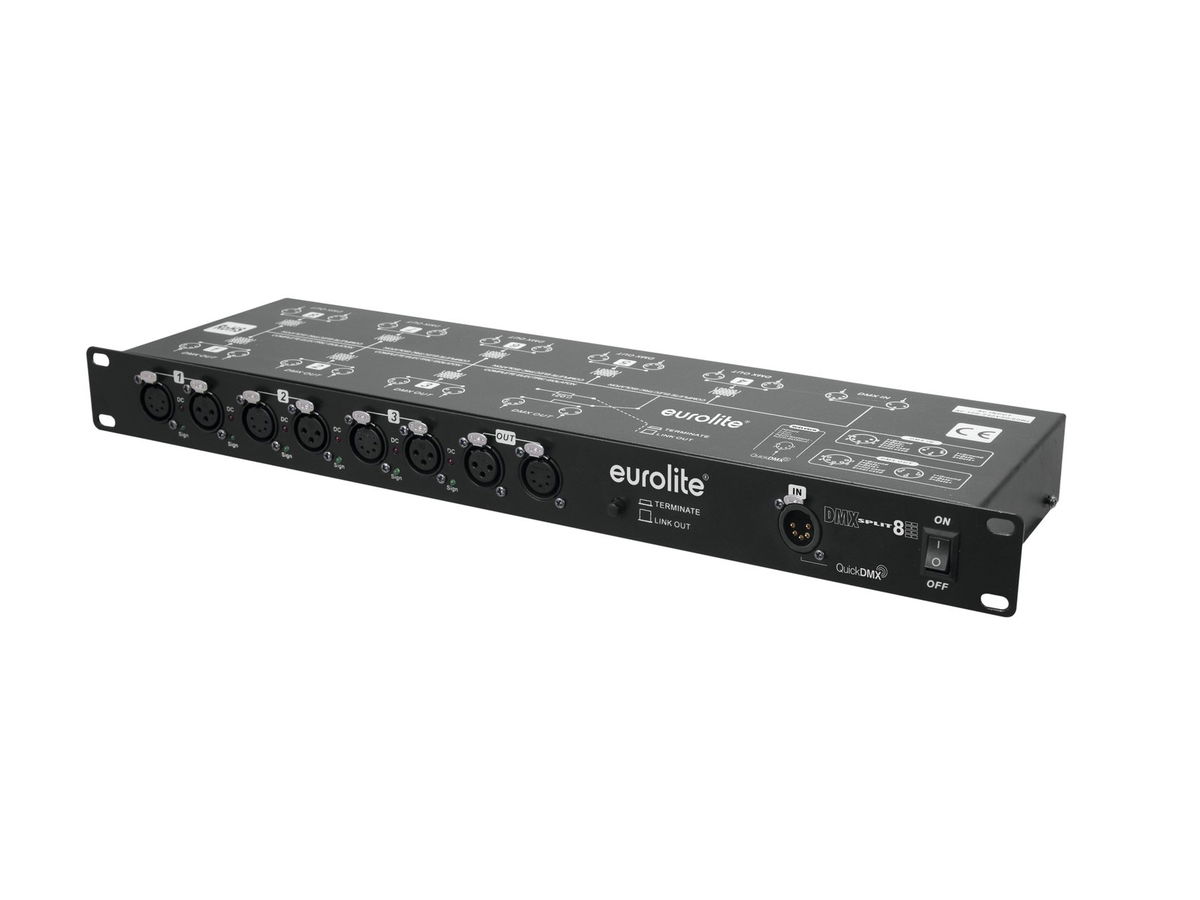

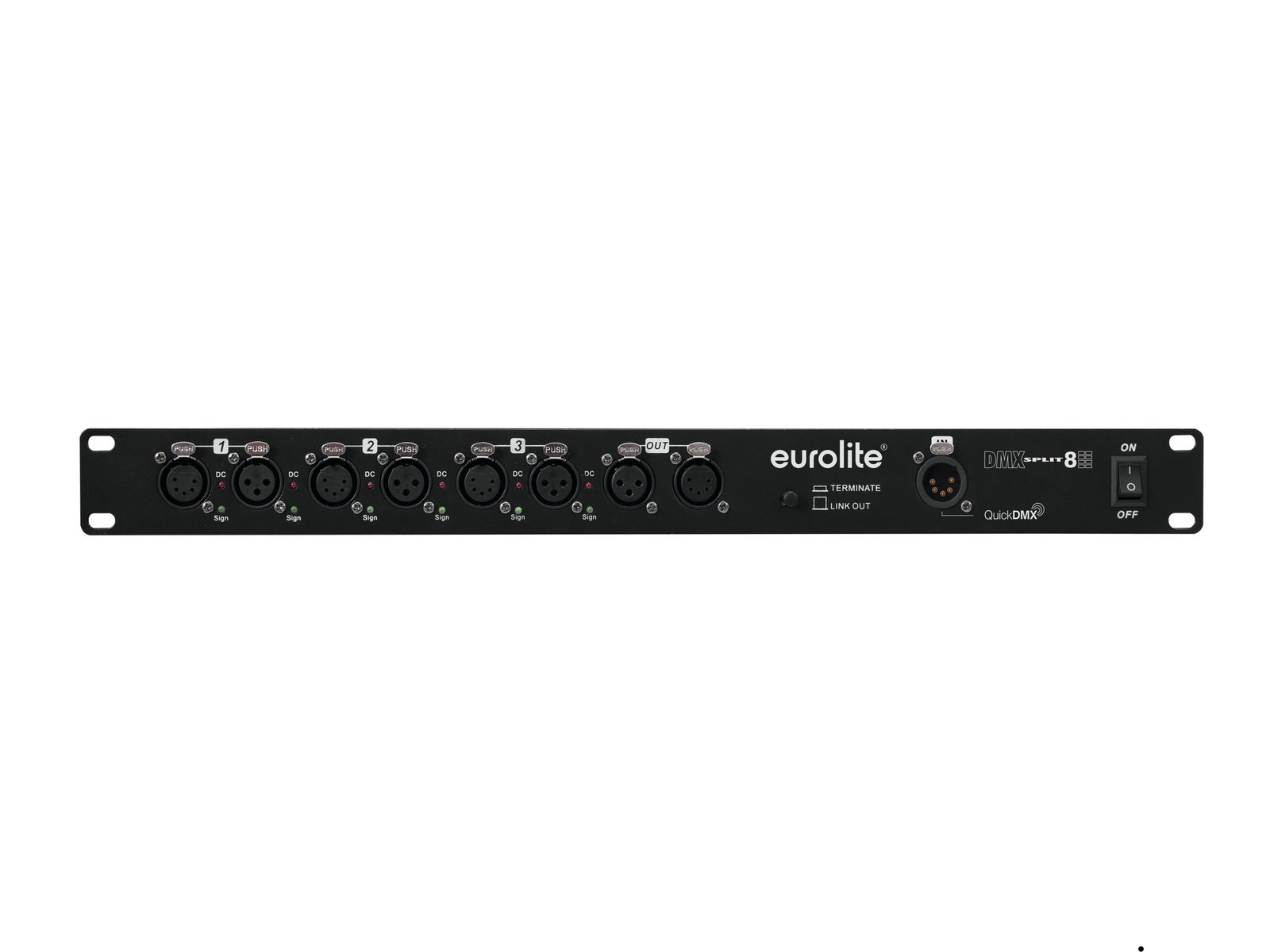

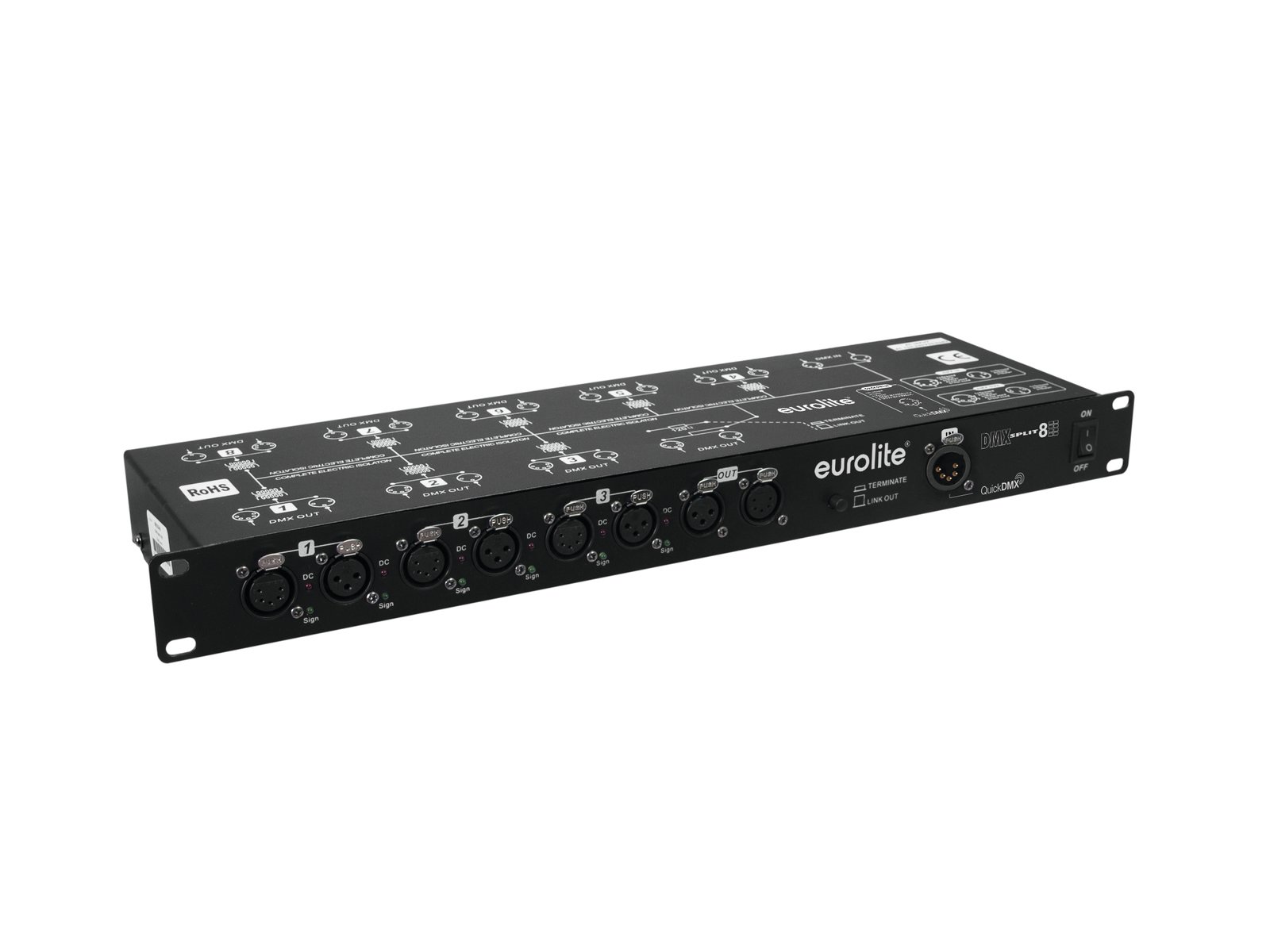

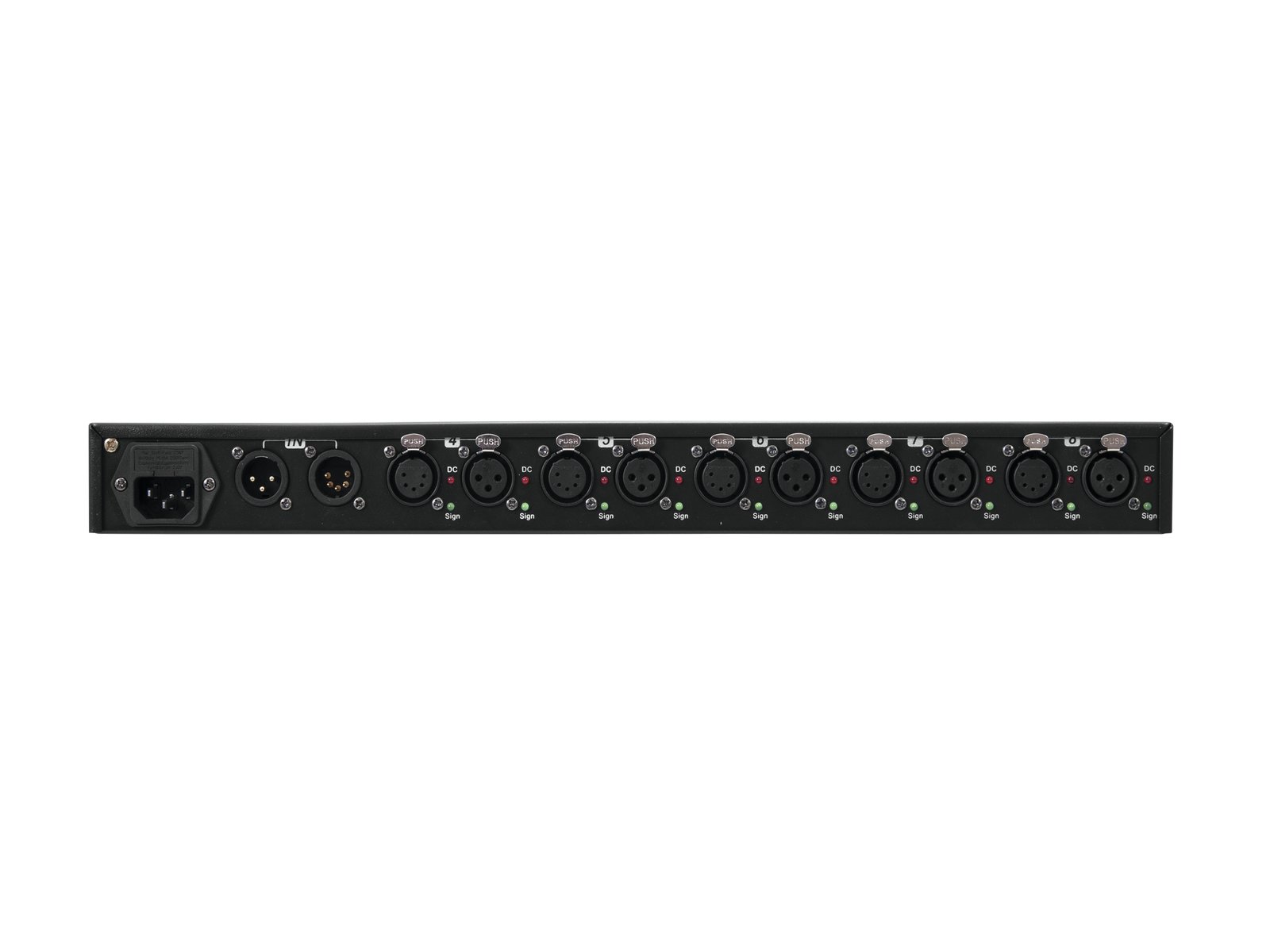

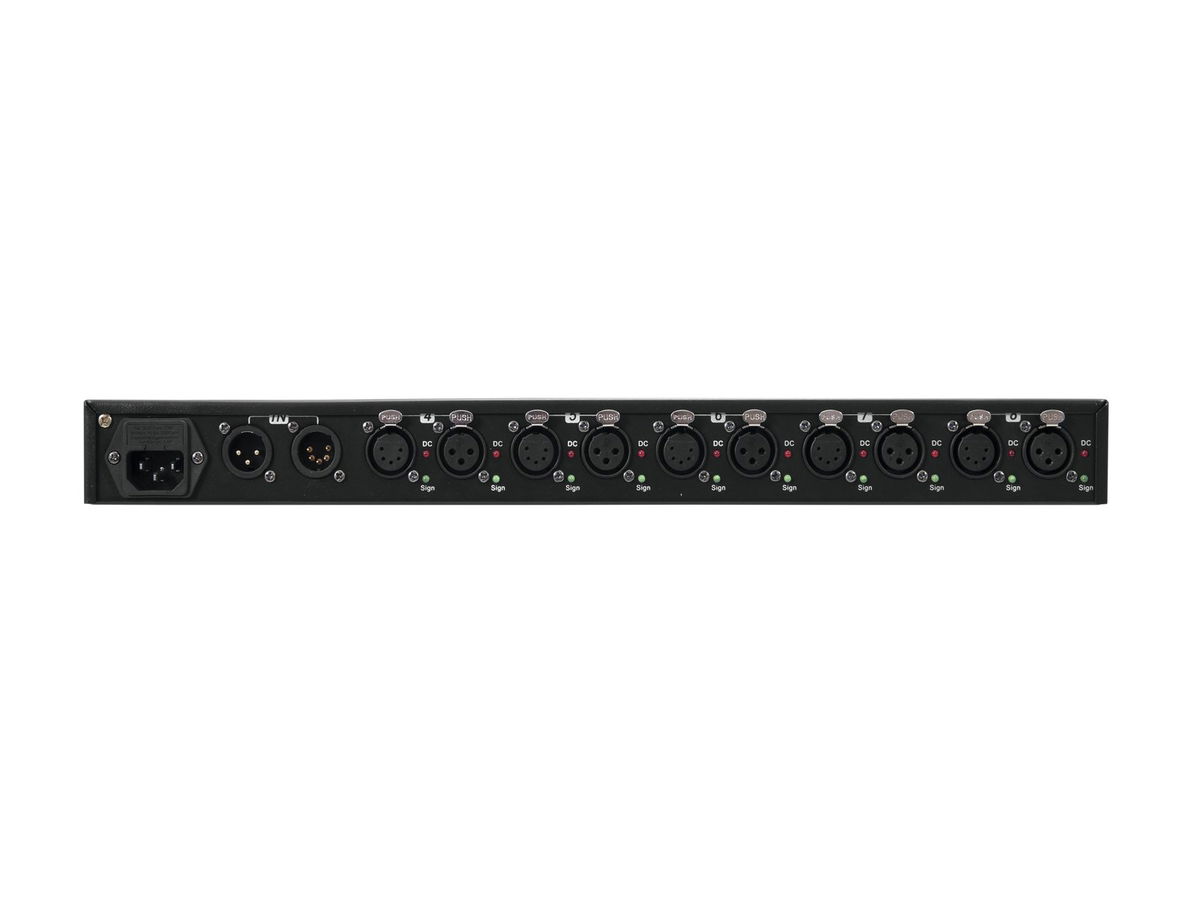

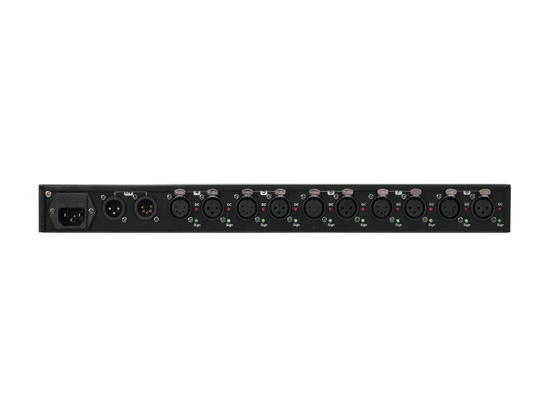

DMX splitter for splitting one DMX input signal to 8 DMX outputs. Connections 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output. Additional QuickDMX input for wireless reception of DMX signals. Input and outputs XLR 3-pin and 5-pin each. Input and outputs galvanically isolated. Each DMX output with independent driver and status indicators. Input and outputs with a set of respective power supply and internal fuse. Switchable termination resistor. Rack mounting.

Power supply: 100-240 V AC, 50/60 Hz ~
Power consumption: 5 W
DMX512 connection: 3-pin and 5-pin XLR
QuickDMX connection: 5-pin XLR
Dimensions (LxWxH): 483 x 145 x 45 mm
Weight: 2 kg
