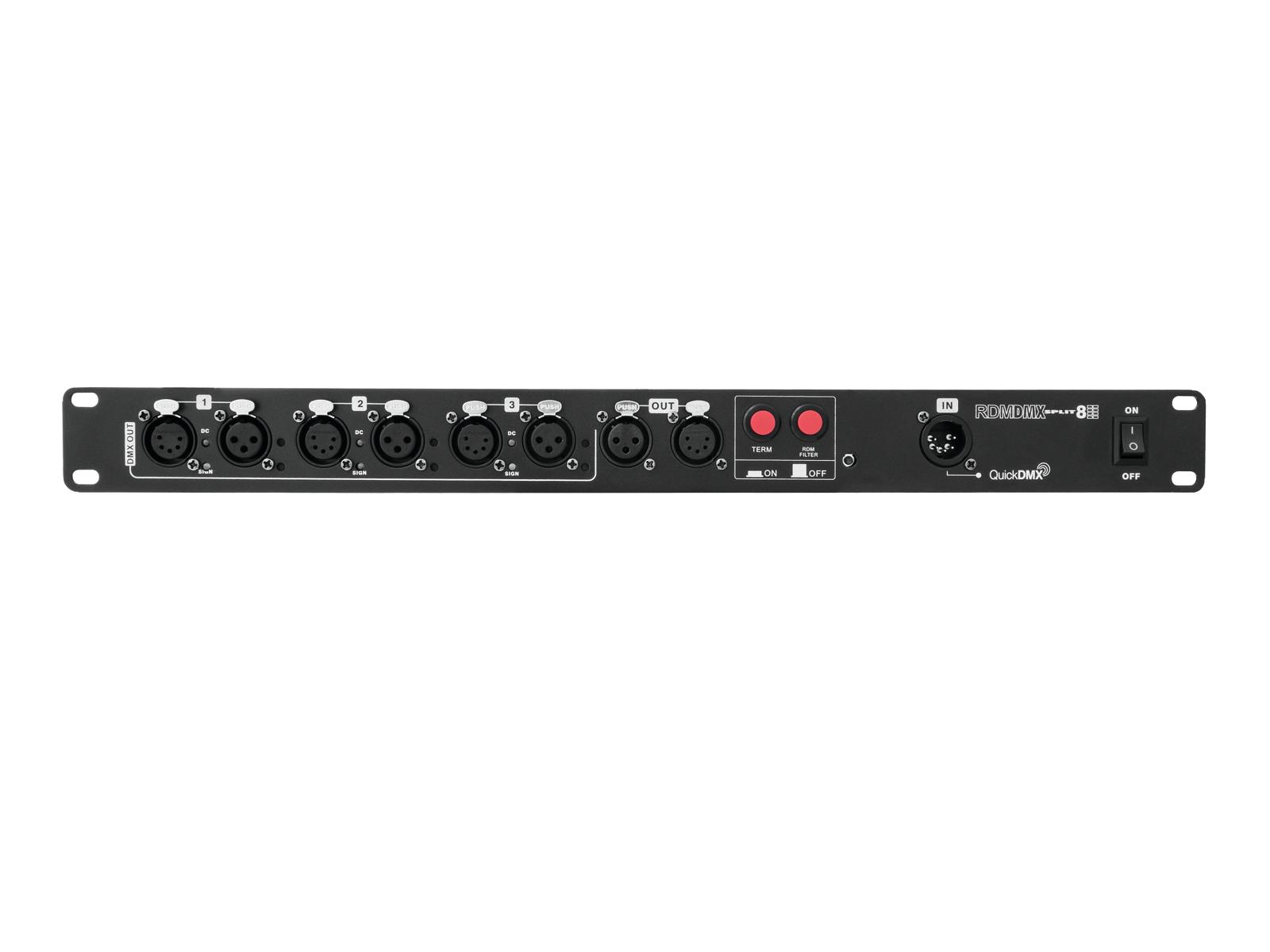

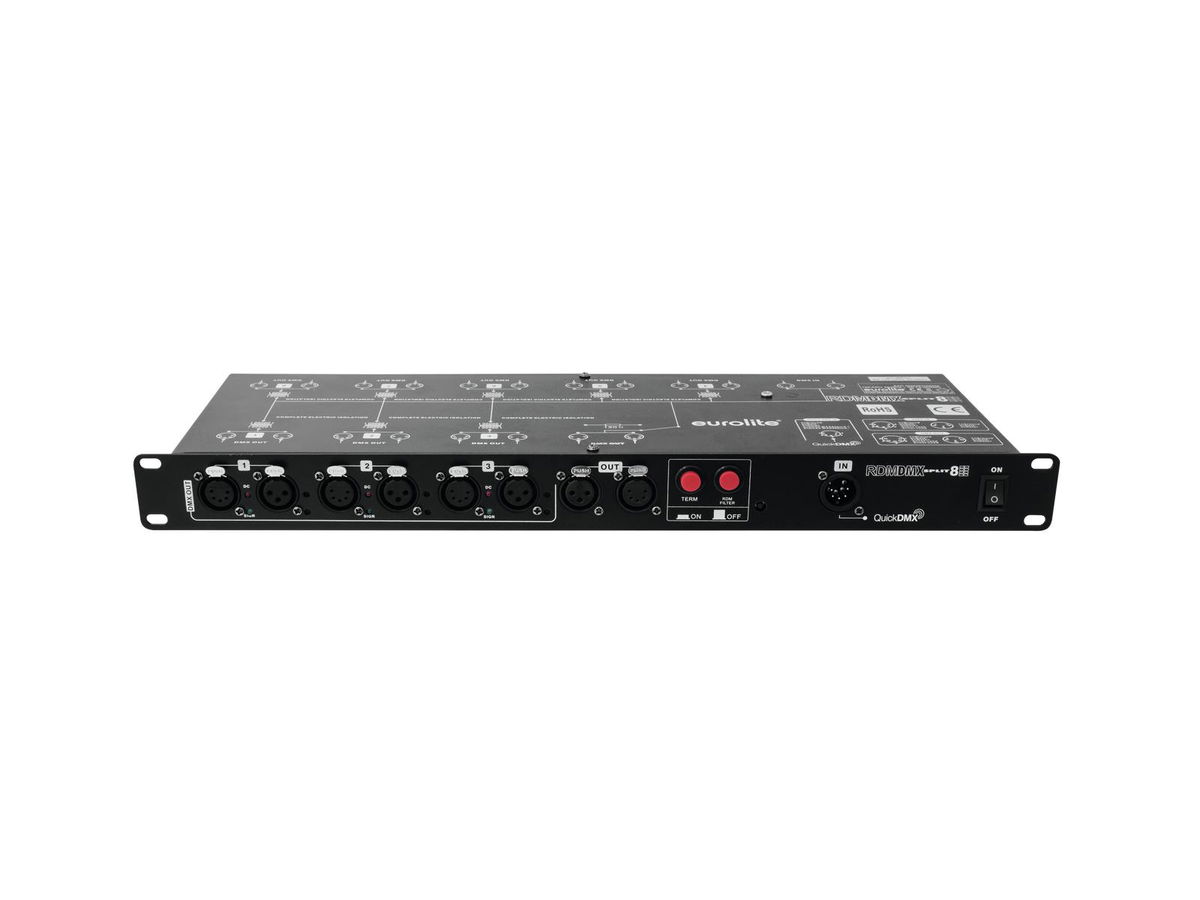

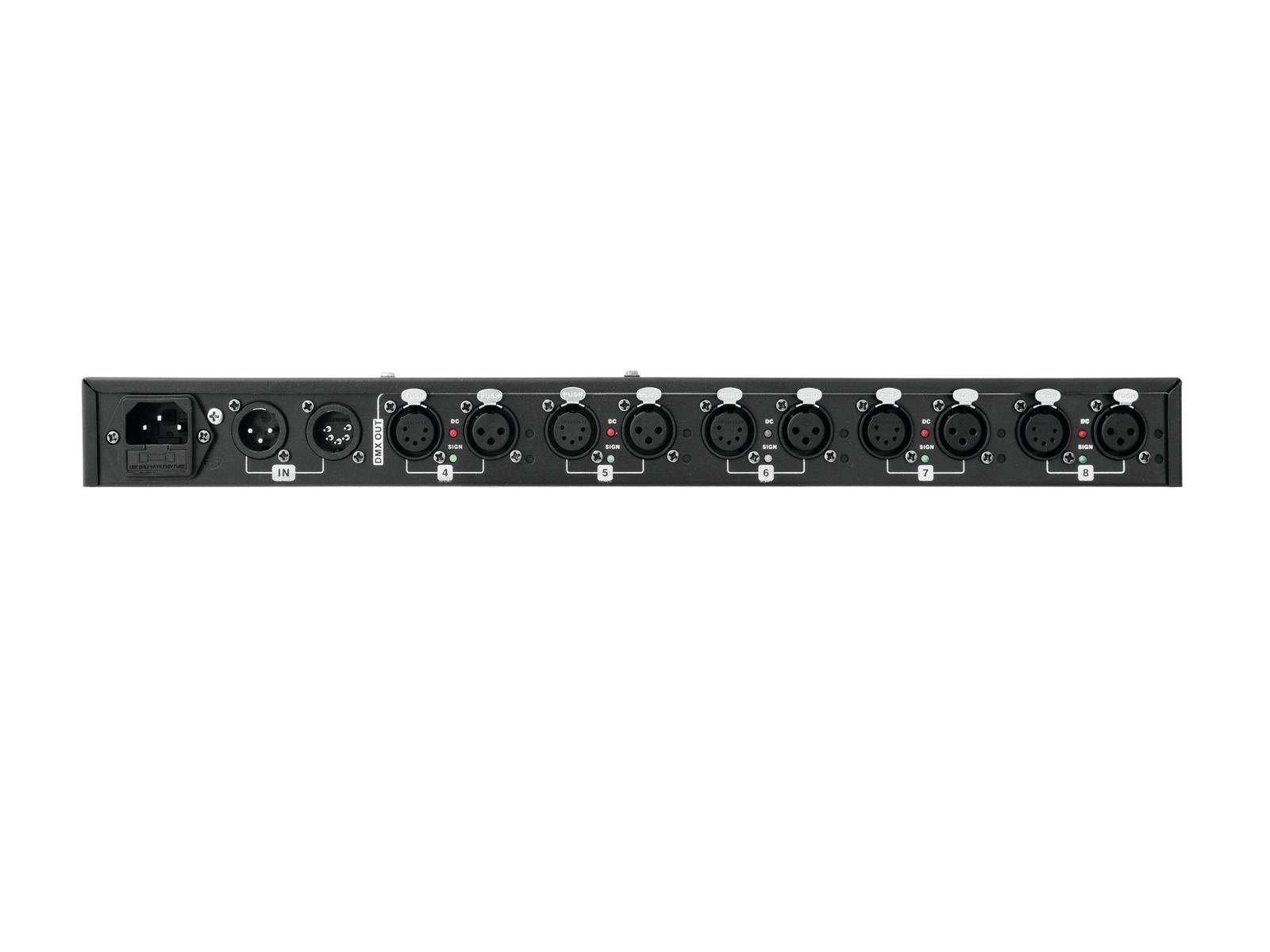

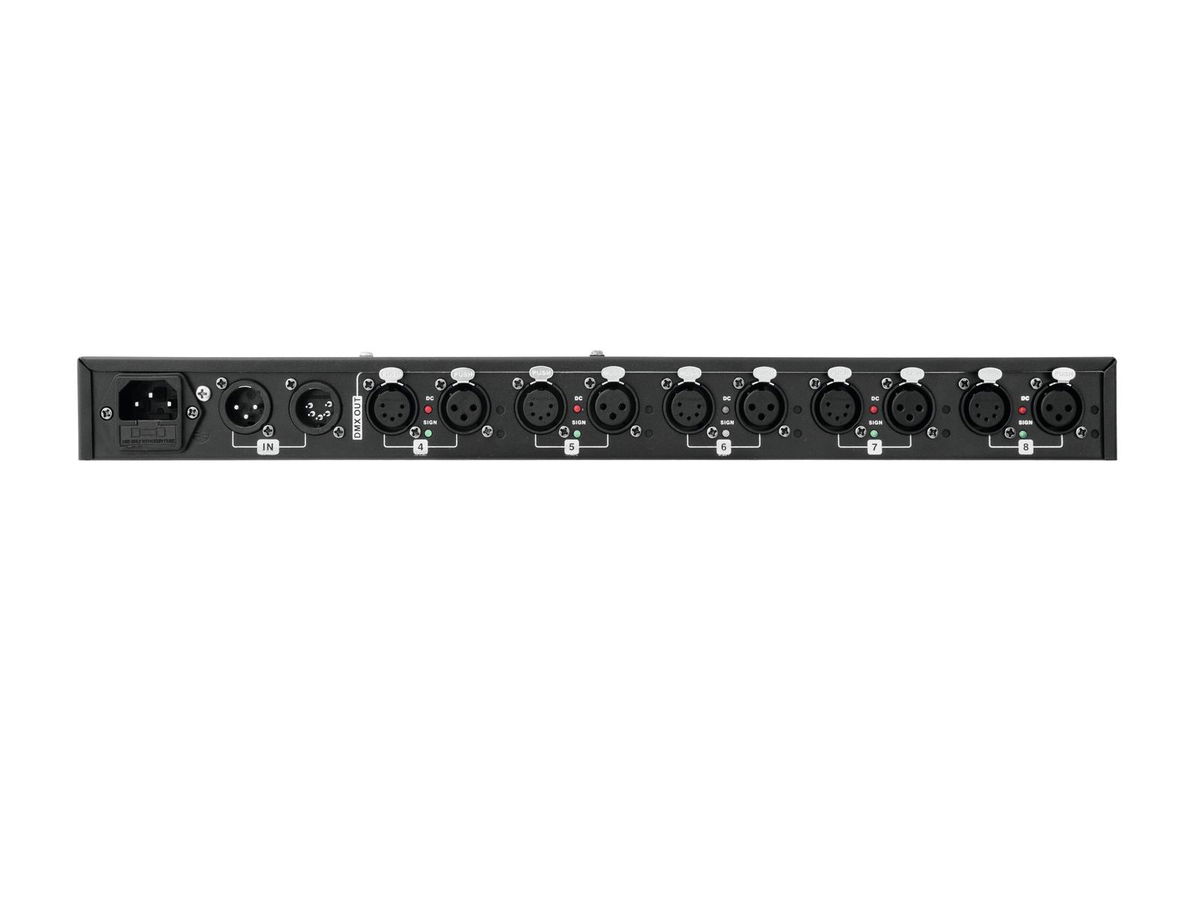

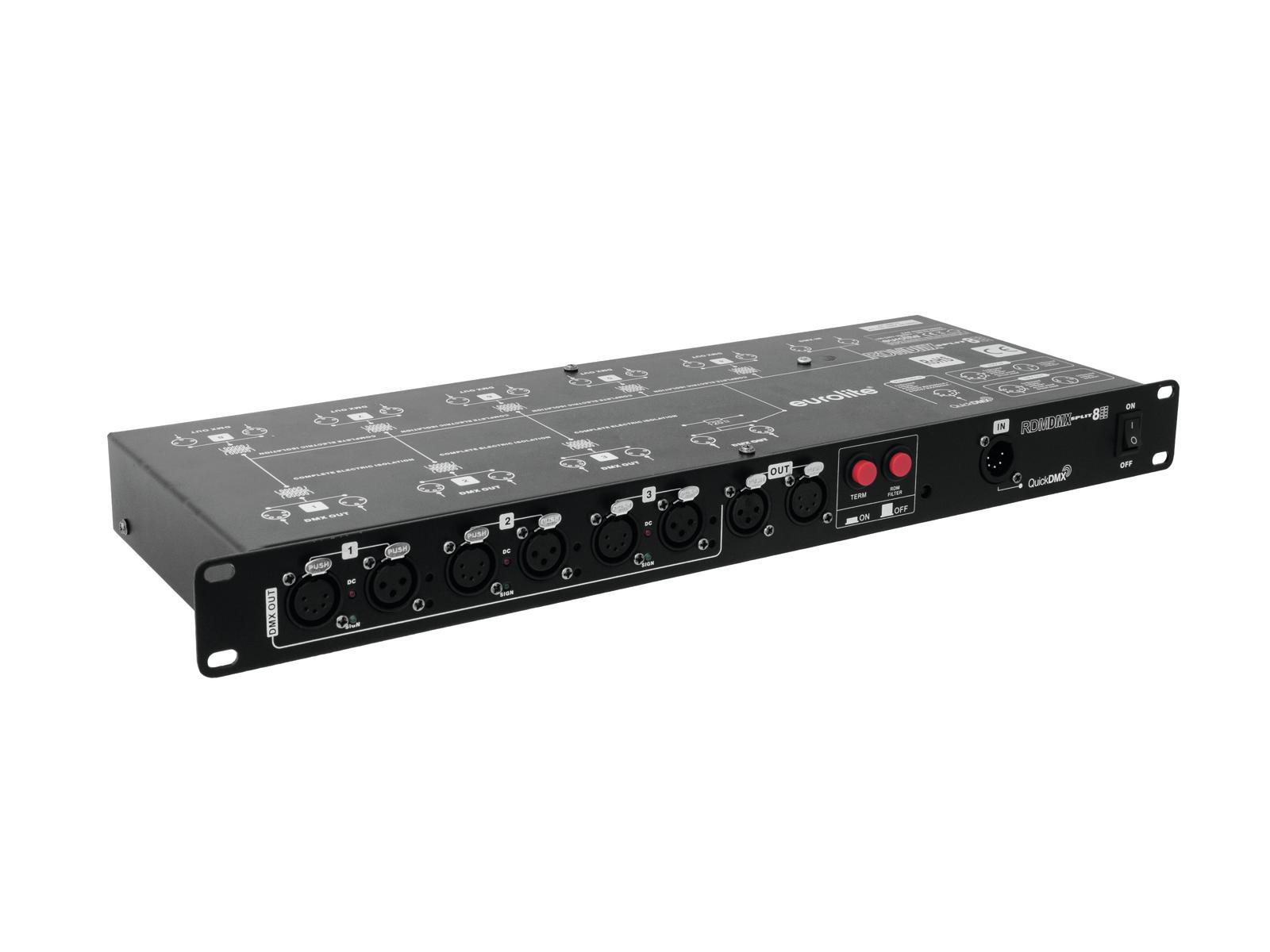

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR socketsDMX splitter for splitting one DMX input signal to 8 DMX outputs Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output Additional QuickDMX input for wireless reception of DMX signals Supports RDM for bidirectional communication over the DMX line Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM Input and outputs XLR 3-pin and 5-pin each Input and outputs galvanically isolated Each DMX output with independent driver and status indicators Input and outputs with a set of respective power supply and internal fuse Switchable termination resistor Rack mounting

Power supply: 110-240 V AC, 50/60 Hz
Power consumption: 5 W
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Width: 48,3 cm
Height: 4,45 cm
Depth: 14,5 cm
Weight: 2,20 kg
DMX connection: 3-pin and 5-pin XLR
QuickDMX connection: 5-pin XLR
