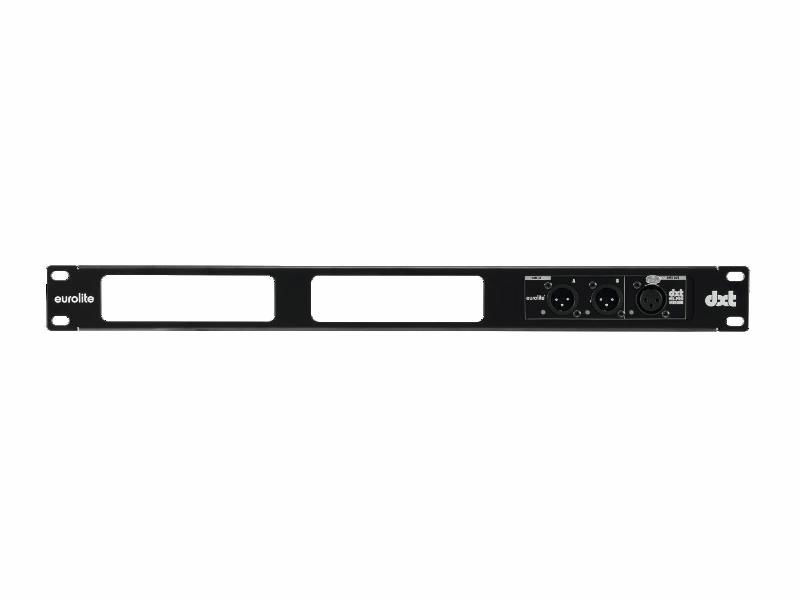

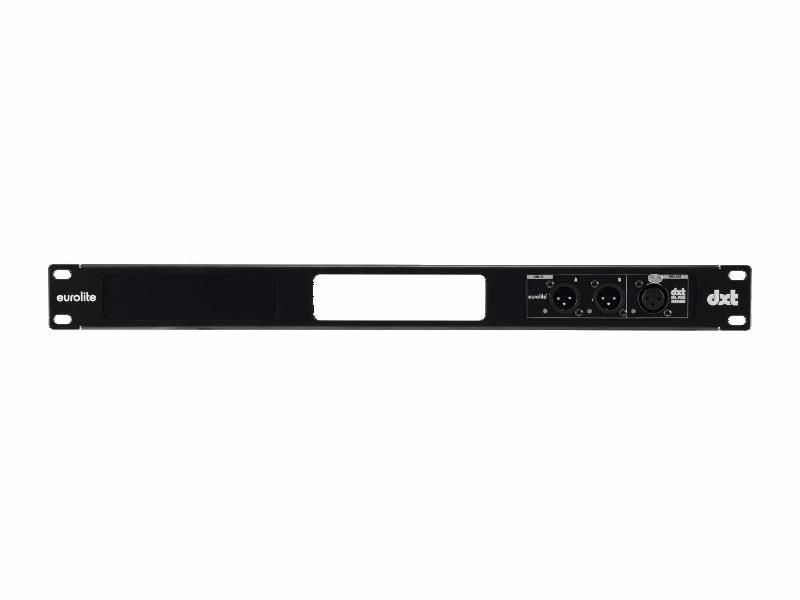

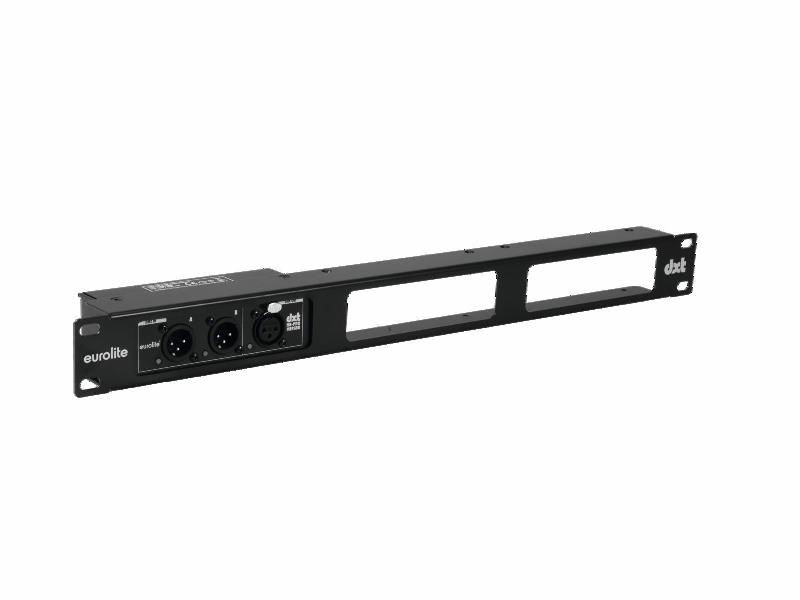

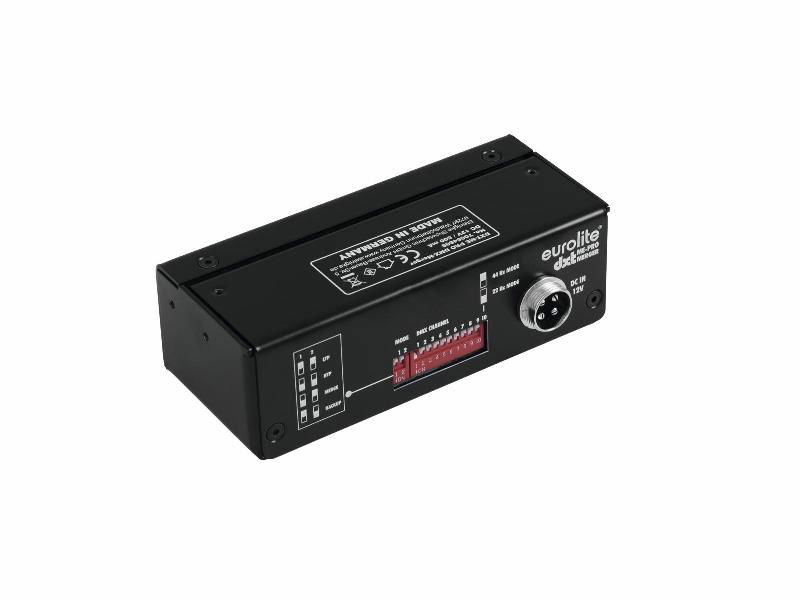

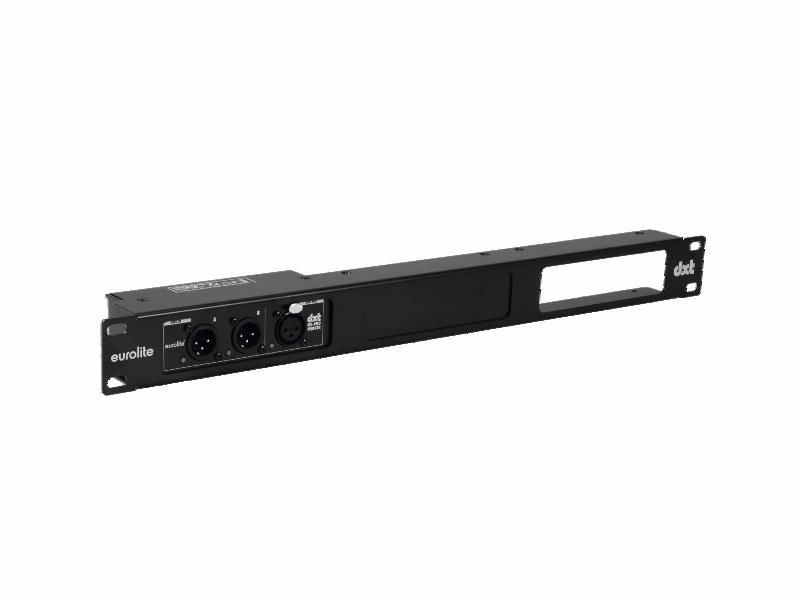

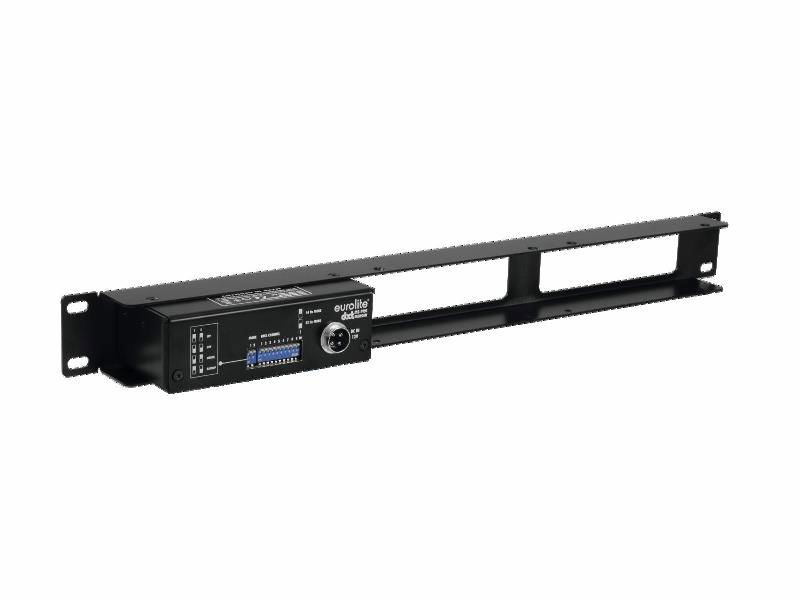

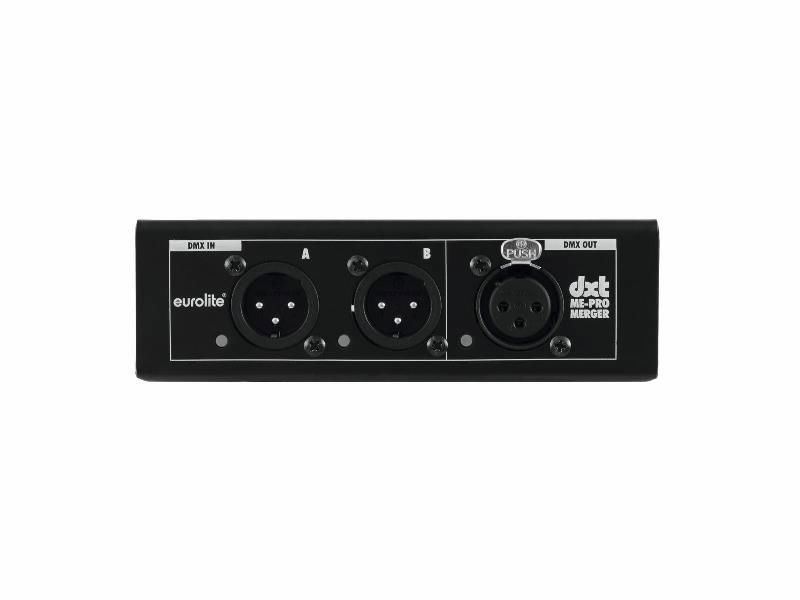

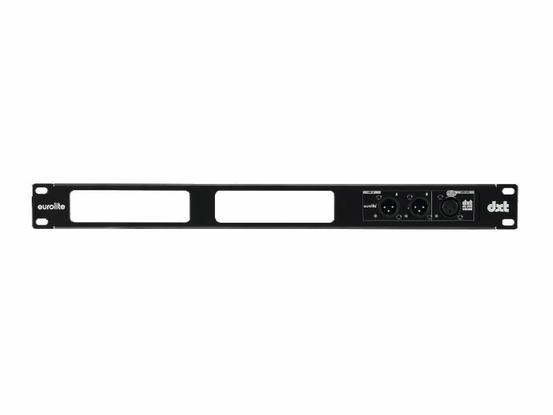

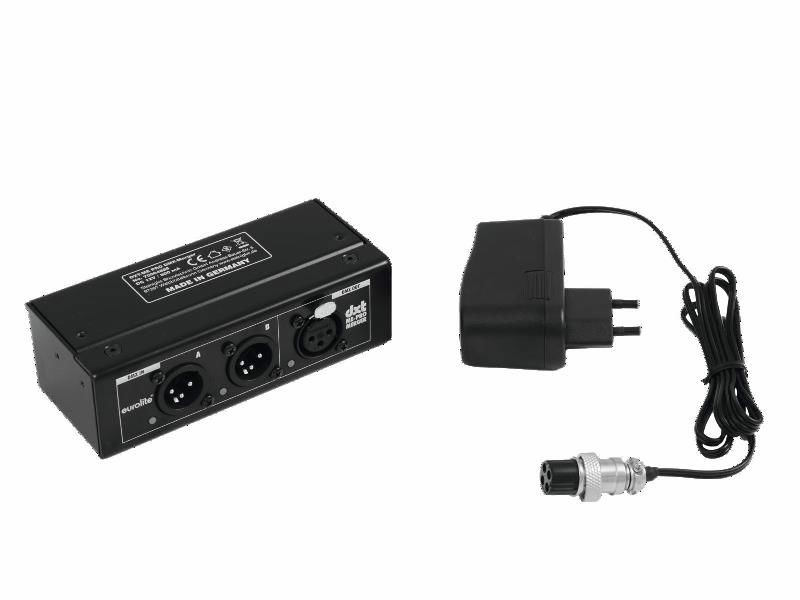

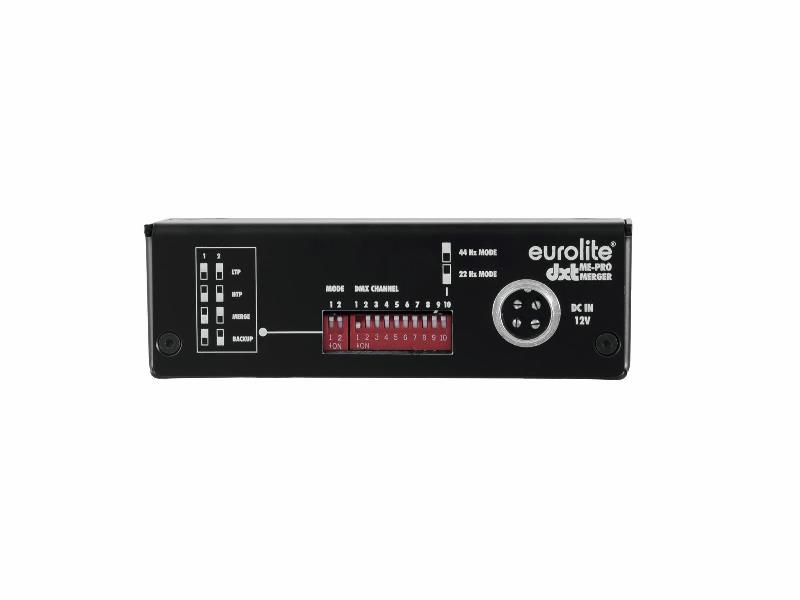

Pro DMX merger with 2 DMX inputs and 1 DMX output Enables two separate consoles to control one DMX system Compact version with rugged metal body for use on stage DMX modes: LTP, HTP, merge or backup Input B can be set to a start address (offset) LED indicator for valid DMX signals Selectable output frequency 22 Hz/44 Hz Steady DMX output 3-pin XLR connectors (Neutrik) Powered via included PSU Rack installation via optional rack mounting kit (item 70064872) Made in Germany

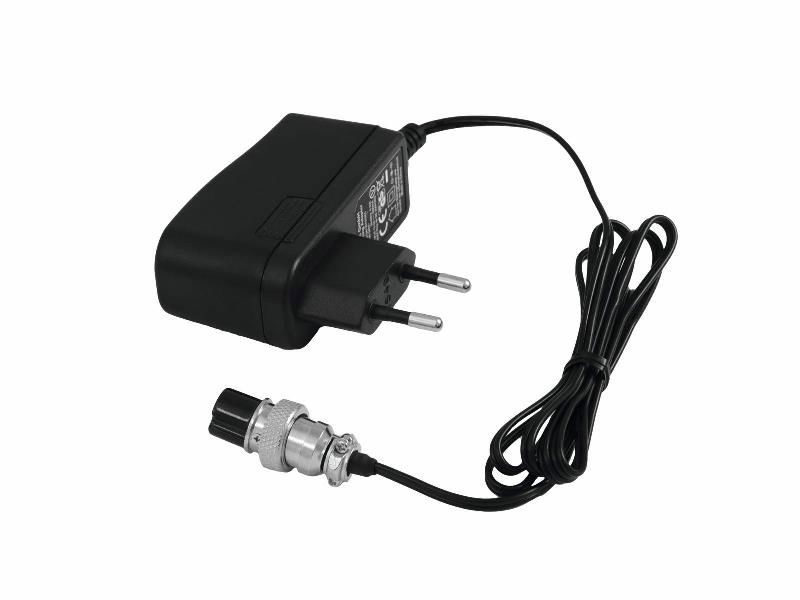

Power supply: 12 V DC, 1 A via included PSU
Power consumption: <1 WDMX512 output: 3-pin XLR connector
DMX512 input: 2 x 3-pin XLR plug
Dimensions (LxWxH): 130 x 70 x 41 mm
Weight:400 g
Shipping weight: 0.67 kg
