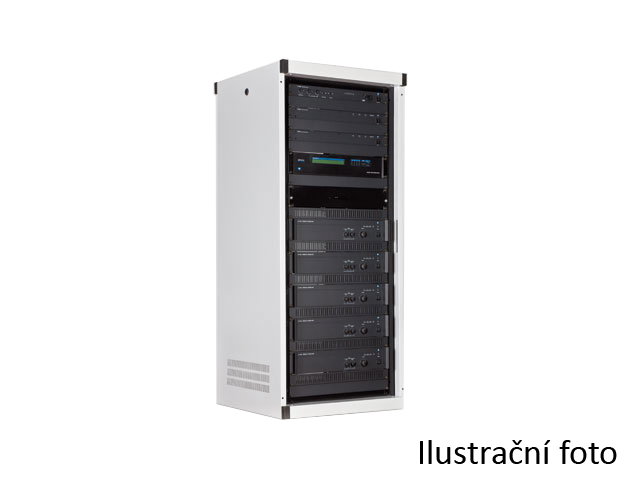

19” ocelový rack 42 U, odnímatelné boční a zadní panely, kabelové výstupy v základně, ventilace s termostatem, 600×2100×600 mm, 64 kg, šedý

• The CR 2600 series rack enclouseres are designed to hold all RCF 19" rack standard components.
• The rack enclosures are bake-painted at high temperature using epoxy powders to make the structure unalterable over timeand resistant to scratching, abrasion, and atmospheric agents.
• The CR 2600 SERIES rack enclosures are composed of a basic structure that is assembled simply and quickly by fitting and securing four steel uprights to the upper and lower panels


Features:

• Constructed in compliance with the IEC 297-2 dimensional standard
• The structure is made of steel painted RAL 7035 light grey
• The protection level is IP 30
• The lower door and side panels are fi tted following the wiring operations to facilitate the insertion and connection of the components
• The earthing of the rack complies with current safety regulations
• Front doors are also available, which are useful for to protect the components installed in the rack
• 3 blowers turn on due to the activation command of a thermostat included


General specifications:

• Type: 19" Rack cabinet
• Unit: 42 U
• Max load: 320 Kg
• Thermal Dissipation 25 °C: 3320 W
• Thermal Dissipation 35 °C: 2180 W
• Colour: RAL 7035
• Protection level: IP 30
• Air flow volume ventilation kit: 300 m3/h


Door section:

• Model: AK 2642 (Code 173.60.030)
• Type: Frontal door with safety glass
• Weight: 21 / 46.29 Kg/Lbs


Physical specification:

• Height: 2000 / 78.74 mm/inch
• Width: 600 / 23.62 mm/inch
• Depth: 600 / 23.62 mm/inch
• Net Weight: 68 / 149.91 Kg/Lbs


Shipping information:

• Package height: / mm/inch
• Package width: / mm/inch
• Package depth: / mm/inch
• Shipping Weight: 96 / 211.64 Kg/Lbs
