tlakový reproduktor obdélníkový venkovní, 25 W/100 V, 108 dB, HP filtr, 60°×130°, 310×165×320 mm, dvojitá isolace, IP66, plast, šedý

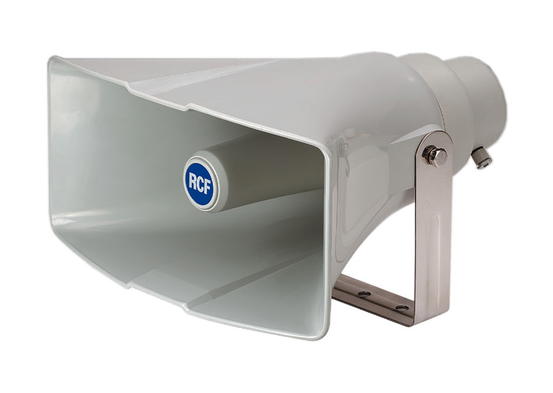

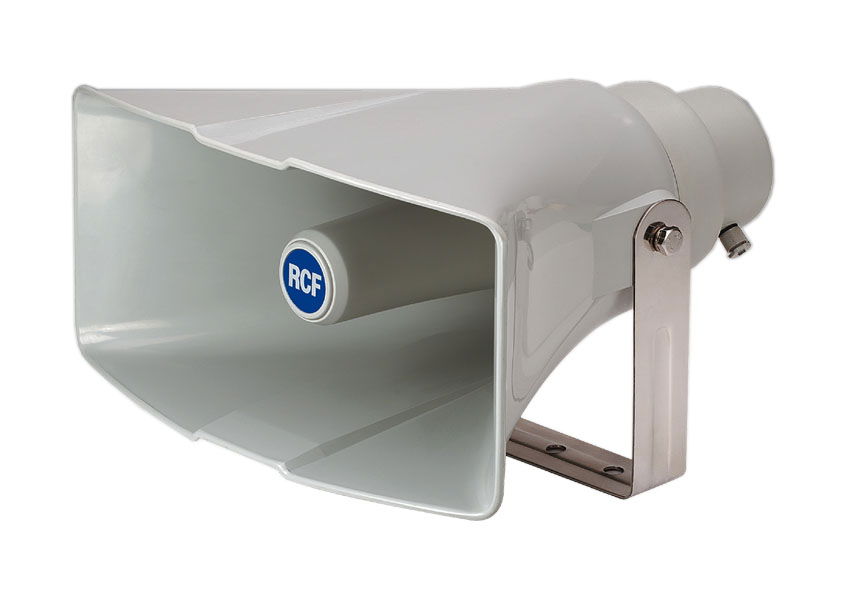

The HD 3216/T are compact, lightweight and watertight horn speakers.
They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover.

Features:

• Built-in line transformer with multitap power selector on rear cover.
• Hi-pass filter for protecting driver against out-of-range low-freq.
• IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C.
• UV-stabilized autoextinguishing UL-HB ABS plastic.
• Colour RAL 7035.
• Stainless-Steel mounting hardware.


Acoustical Specifications:

• Type of speaker: Rectangular, with driver unit and transformer
• Frequency Response: 250 Hz ÷ 10 kHz
• Max SPL @ 1m: 122 dB
• Horizontal coverage angle: 60°
• Vertical coverage angle: 130°
• Power Handling: 25 W RMS
• Peak Power Handling: 38 W PEAK
• System Sensitivity: 108 dB
• Impedance: 8 ohm
• Protections: IP 66


Input Section:

• Input connector: 2 conductor cable, 1 meter lenght
• Constant voltage: 100 V , 70 V V
• Power Selection: 25 - 20 - 15 - 10 - 5 W (100V)


Cabinet:

• Hardware: ABS UL- 94HB; UV
• Stabilized Colour: Grey


Physical Specifications:

• Height: 165 / 6.49 mm/inch
• Width: 310 / 12.20 mm/inch
• Depth: 320 / 12.59 mm/inch
• Net weight: 2.37 / 5.22 kg/lbs


Shipping information:

• Package height: 180 / 7.08 mm/inch
• Package width: 330 / 12.99 mm/inch
• Package depth: 390 / 15.35 mm/inch
• Shipping weight: 3.1 / 6.83 kg/lbs
