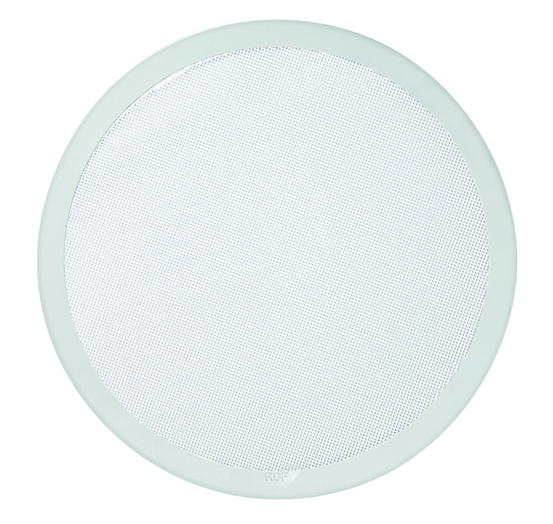

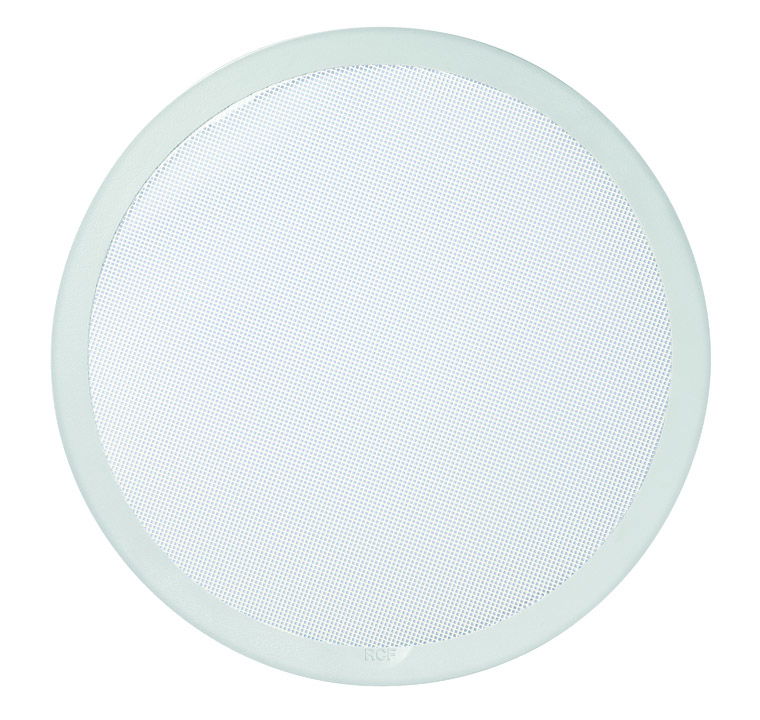

podhledový reproduktor kruhový, 2pásmový 5"+1" kalot. waveguide, 30W/100V, 60 W/16 ohm, 91 dB, 120°×120°, 265×155 mm, 16mm nad povrch, otvor 248mm, plast/kov, bílý


Back dome is made of aluminium.


Features:

• Two way bass refl ex ceiling speaker for music reproduction
• Speaker: woofer 5" neodymium magnet tweeter 1" dome neodymium magnet
• Power/RMS: 120/60W Bypass
• Impedance: [Bypass] 16 ohm
• [70,7V]: 15W - 10W - 5W - 2.5 W
• Crossover frequencies: 3000 Hz, 12/12 dB/oct - High pass fi lter at 150 Hz
• Angle of coverage: 120° horizontal x 120° vertical
• Cabinet: Plastic material self-extinguishing, Tuned Alu-dome


Acoustical Specifications:

• Type of speaker: 2 way bass reflex ceiling
• Frequency Response: 70 Hz ÷ 20 kHz
• Max SPL @ 1m: 112 dB
• Horizontal coverage angle: 120°
• Power Handling: 60 W RMS
• Peak Power Handling: 120 W PEAK
• System Sensitivity: 92 dB
• Impedance: 16 ohm
• Crossover frequencies: 3000 Hz




• Speaker: 5"
• Tweeter: 1"


Input Section:

• Input connector: 2 euroblock
• Constant voltage: 100 V, 70 V
• Power Selection: 30 - 20 - 10 - 5 W (100 V)


Cabinet:

• Hardware: Body in self-extinguishing plastic
• Colour: White / Silver
• Grille: Steel


Physical Specifications:

• Height: 155 / 6.10 mm/inch
• Width: 265 / 10.43 mm/inch
• Depth: 265 / 10.43 mm/inch
• Net weight: 2.1 / 4.62 kg/lbs


Shipping information:

• Package height: 235 / 9.25 mm/inch
• Package width: 310 / 12.20 mm/inch
• P ackage depth: 310 / 12.20 mm/inch
• Shipping weight: 3 / 6.61 kg/lbs
