podhledový reproduktor kruhový, 2pásmový, 8” koax., 10 W/100 V, 97 dB, 266×112 mm, 3 mm nad povrch, otvor 244 mm, plast/kov, bílý, možné příslušenství: zadní kryt A1380

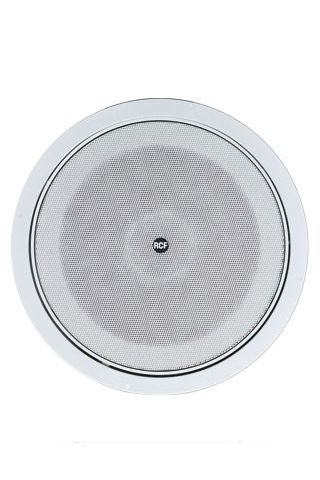

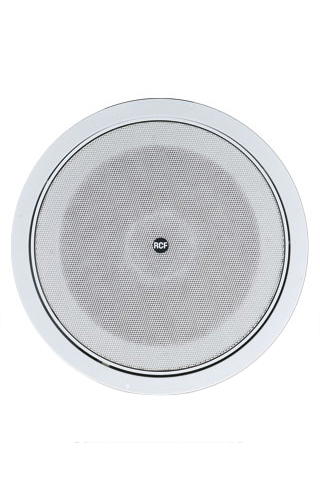

Overhead speaker for false ceiling installation.
The PL 81/A provides a wider amgle of coverage for large spaces with medium to high ceilings.
The PL 81/A can support up to 40 W power and, if used without transformer, can generate a sound pressure of 113 dB.
The A 1380 protection can be fitted when required by safety regulations.


Features:

• High effi ciency speaker for high quality speech/music reproduction, also in environments with high ceilings
• Music power/RMS for use without transformer: 20/10W (max. 40W, 8ohm)
• Professional 8" coaxial speaker, cone tweeter
• Low impedance (8ohm) or 100V
• Built-in multi-tapped transformer for 100/70V constant voltage connection
• Body in self-extinguishing plastic UL-94-5VA and front metal grille RAL 9010 White
• Optional accessory: A 1380 protective base in aluminium (cod.13320031)


Acoustical Specifications:

• Type of speaker: Ceiling
• Frequency Response: 40 Hz ÷ 20 kHz
• Max SPL @ 1m: 110 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 90°
• Power Handling: 10 W RMS
• Peak Power Handling: 20 W PEAK
• System Sensitivity: 97 dB
• Impedance: 8 ohm


Transducers:

• Speaker: 8" Coaxial: 1"

Input Section:

• Input connector: 6 pin terminal block
• Constant voltage: 100 V / 50 V
• Power Selection: 10 - 5 - 2.5 - 1.25 W (100 V)


Cabinet:

• Hardware: Plastic material
•Colour: White
• Grille: Steel


Physical Specifications:

• Height: 112 / 4.40 mm/inch
• Width: 266 / 10.47 mm/inch
• Depth: 266 / 10.47 mm/inch
• Net weight: 2.33 / 5.13 kg/lbs


Shipping information:

• Package height: 170 / 6.69 mm/inch
• Package width: 295 / 11.61 mm/inch
• Package depth: 300 / 11.81 mm/inch
• Shipping weight: 2.95 / 6.50 kg/lbs
