podhledový reproduktor kruhový, 6”, 6 W/100 V, 91 dB, 204×75 mm, 6 mm nad povrch, otvor 180 mm, plast/kov, bílý, možné příslušenství: povrchová krabice A1360

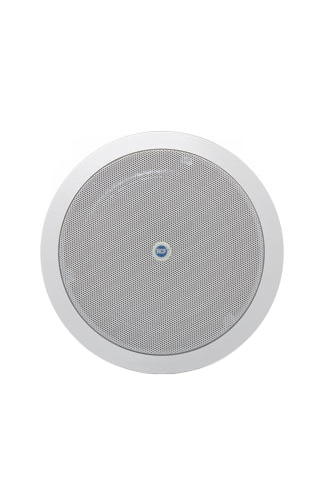

The PL60 is a ceiling speaker with an elegant design, intended for recess installation in false ceilings or panels. It is ideal for the reproduction of announcements and background music and features a multiplesocket line transformer for use with constant voltage systems.

Features:

• For paging and background music
• Music power / RMS: 10 / 6 W
• 6" dual cone wide band loudspeaker
• Sound pressure level at music power: 102 dB/1 m
• Low impedance (4ohm) or 100V
• Built-in multi-tapped transformer for 100/70V constant voltage connection
• Body in self-extinguishing plastic UL-94-V0
• Front metal grille RAL 9010 White


Acoustical Specifications:

• Type of speaker: Ceiling
• Frequency Response: 110 Hz ÷ 20 kHz
• Max SPL @ 1m: 102 dB
• Horizontal coverage angle: 150°
• Vertical coverage angle: 150°
• Power Handling: 6 W RMS
• Peak Power Handling: 12 W PEAK
• System Sensitivity: 91 dB
• Impedance: 8 ohm


Transducers:

• Speaker: 6"


Input Section:

• Input connector: 5-pin terminal strip
• Constant voltage: 100 V / 70 V
• Power Selection: 6 - 3 W (110 V)


Cabinet:

• Hardware: Plastic material
• Colour: White
• Grille: Steel


Physical Specifications:

• Height: 75 / 2.95 mm/inch
• Width: 204 / 8.03 mm/inch
• Depth: 204 / 8.03 mm/inch
• Net weight: 800 / 1.76 kg/lbs


Shipping information:

• Package height: 240 / 9.44 mm/inch
• Package width: 235 / 9.25 mm/inch
• Package depth: 105 / 4.13 mm/inch
• Shipping weight: 1.07 / 2.35 kg/lbs
