podhledový reproduktor kruhový, 2pásmový, 6” koax., 12 W/100 V, 92 dB, 204×73 mm, 7 mm nad povrch, otvor 182 mm, IP44, plast/kov, bílý

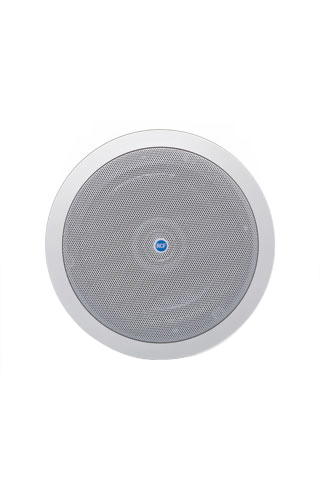

The PL6X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels.
Incorporating a 160 mm (6”) loudspeaker.
Both have a coaxial 25 mm (1”) tweeter placed on a bridge support.
The speakers are equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V.
The multiple sockets on the transformer make it possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features:

• Two way speaker system with dome tweeter recommended for speech and background-music reproduction
• Music power/RMS: 24/12W
• 6" woofer with coaxial tweeter 1"
• Low impedance (8?) or 100V
• Built-in multi-tapped transformer for 100/70V constant voltage connection
• Three hooks mounting system (no screws or other attachment elements)
• Body in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
• IP 44 protection


Acoustical Specifications:

• Type of speaker: Ceiling
• Frequency Response: 70 Hz ÷ 20 kHz
• Max SPL @ 1m: 106 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 100°
• Power Handling: 12 W RMS
• Peak Power Handling: 24 W PEAK
• System Sensitivity: 92 dB
• Impedance: 8 ohm
• Protections: IP 44


Transducers:

• Speaker: 6" Coaxial: 1"


Input Section:

• Input connector: 6 pin terminal block
• Constant voltage: 100 V / 70 V
• Power Selection: 12 - 6 - 3 W (100 V)


Cabinet:

• Hardware: Plastic material
• Colour: White
• Grille: Steel


Physical Specifications:

• Height: 73 / 2.87 mm/inch
• Width: 204 / 8.03 mm/inch
• Depth: 204 / 8.03 mm/inch
• Net weight: 1.28 / 2.82 kg/lbs


Shipping information:

• Package height: 110 / 4.33 mm/inch
• Package width: 240 / 9.44 mm/inch
• Package depth: 240 / 9.44 mm/inch
• Shipping weight: 1.56 / 3.43 kg/lbs
