obousměrný reproduktor obdélníkový, 2×6” eliptický reprod,, 6 W/100 V, 90 dB, 184×237×120 mm, plast, bílý

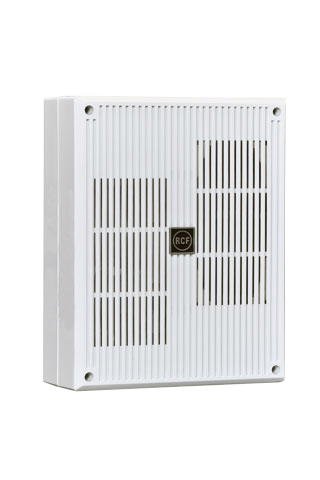

• The CSB/1T-N speaker is designed for wall installation. It incorporates two opposing elliptical loudspeakers that enable bidirectional acoustic output, ideal for sound systems in long corridors.
• The built-in line transformer makes it possible to connect the CSB/1T-N to constant voltage audio lines at 50V or 100V, with the possibility to select the output power.


Features:

• Bidirectional output.
• Two opposing extended range elliptical loudspeakers
• Line transformer for constant voltage sound systems
• Body in white plastic
• Bracket for wall installation
• Possibility to select the output power from several values
• Quick and easy installation


Acoustical Specifications:

• Type of speaker: Bidirectional wall and ceiling speaker with transformer
• Frequency Response: 120 Hz ÷ 10 kHz
• Max SPL @ 1m: 101 dB
• Horizontal coverage angle: 80°
• Vertical coverage angle: 110°
• Power Handling: 6 W RMS
• Peak Power Handling: 12 W PEAK
• System Sensitivity: 90 dB
• Impedance: 8 ohm


Transducers:

• Speaker: 2 x 6"


Input Section:

• Input connector: 2 conductor cable
• Constant voltage: 100 V , 50 V V
• Power Selection: 6 - 3 - 1.5 - 0.75 W (100 V)


Cabinet:

• Hardware: Plastic material
• Colour: White


Physical Specifications:


• Height: 234 / 9.21 mm/inch
• Width: 240 / 9.44 mm/inch
• Depth: 184 / 7.24 mm/inch
• Net weight: 1.24 / 2.73 kg/lbs


Shipping information:

• Package height: 190 / 7.48 mm/inch
• Package width: 265 / 10.43 mm/inch
• Package depth: 130 / 5.11 mm/inch
• Shipping weight: 1.54 / 3.39 kg/lbs
