reprobox venkovní, 2pásmový, 6”+1” kalot., 25 W/100 V, 89 dB, 120°×140°, 216×289×177 mm, IP55, plast/kov, bílý

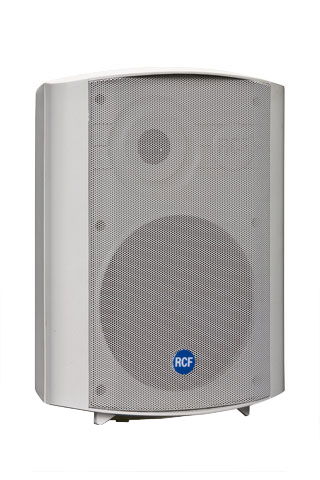

DM 61 is a compact two way speaker designed for constant voltage systems.

The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music apllications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

Features:

• Woofer 6" with mylar cone tweeter
• Program/rated power: 50/25W
• Built-in multitap transformer for constant voltage system
• Body in self-extinguishing composite material
• IP55 protection, suitable for outdoor use


Acoustical Specifications:

• Type of speaker: Compact two-way
• Frequency Response: 100 Hz ÷ 20 kHz
• Max SPL @ 1m: 106 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 140°
• Power Handling: 25 W RMS
• Peak Power Handling: 50 W PEAK
• System Sensitivity: 89 dB
• Impedance: 8 ohm
• Protections: IP 55
• Crossover frequencies: 6 Hz


Transducers:

• Speaker: 6"
• Tweeter: 1"


Input Section:

• Input connector: 2 conductor cable
• Constant voltage: 100 V, 70 V
• Power Selection: 25 - 15 - 10 - 5 W (100V)


Cabinet:

• Hardware: Body in self-extinguishing composite material
• Colour: White ivory
• Grille: Steel


Physical Specifications:

• Height: 289 / 11.37 mm/inch
• Width: 216 / 8.5 mm/inch
• Depth: 177 / 6.96 mm/inch
• Net weight: 3.98 / 8.77 kg/lbs


Shipping information:

• Package height: 340 / 13.38 mm/inch
• Package width: 265 / 10.43 mm/inch
• Package depth: 250 / 9.84 mm/inch
• Shipping weight: 4.5 / 9.92 kg/lbs
