tlakový reproduktor kruhový venkovní, 30 W/100 V, 108 dB, HP filtr, 80°, 310×315 mm, dvojitá isolace, IP66, hliník, šedý

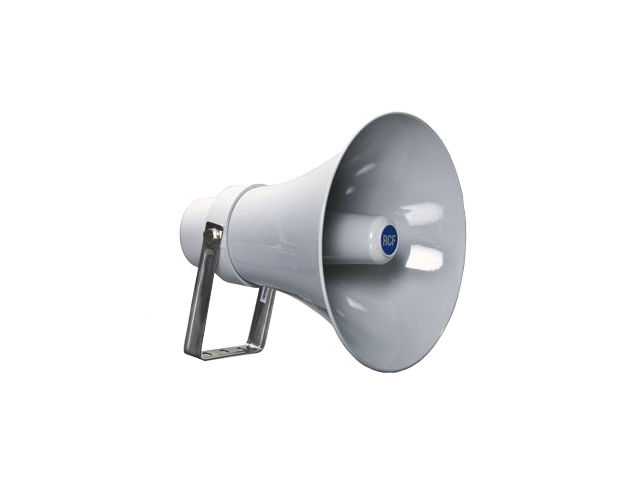

The HD 310/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the demnlievered power by means of a rotary dial on the rear cover.

Features:

• Built-in line transformer with multitap power selector on rear cover.
• Hi-pass filter for protecting driver against out-of-range low-freq.
• IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C.
• Aluminium flare with UV-stabilized autoextinguishing UL-HB ABS rear cover.
• Colour RAL 7035.
• Stainless-Steel mounting hardware.
• Double insulation design.


Acoustical Specifications:

• Type of speaker: Die cast aluminium
• Frequency Response: 240 Hz ÷ 10 kHz
• Max SPL @ 1m: 123 dB
• Horizontal coverage angle: 80°
• Vertical coverage angle: 80°
• Power Handling: 30 W RMS
• Peak Power Handling: 45 W PEAK
• System Sensitivity: 108 dB
• Impedance: 8 ohm
• Protections: IP 66


Input Section:

• Input connector: 2 conductor cable, 1 meter lenght
• Constant voltage: 100 V , 70 V V
• Power Selection: 30 - 20 - 15 - 10 - 5 W (100V)


Cabinet:

• Hardware: Aluminium flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
• Colour: Grey


Physical Specifications:

• Height: 310 / 12.20 mm/inch
• Width: 310 / 12.20 mm/inch
• Depth: 315 / 12.40 mm/inch
• Net weight: 2.4 / 5.29 kg/lbs


Shipping information:

• Package height: 330 / 12.99 mm/inch
• Package width: 320 / 12.59 mm/inch
• Package depth: 360 / 14.17 mm/inch
• Shipping weight: 5.57 / 12.27 kg/lbs
