tlakový reproduktor kruhový venkovní, 50 W/100 V, 112 dB, HP filtr, 90°, 410×385 mm, dvojitá isolace, IP66, hliník, šedý

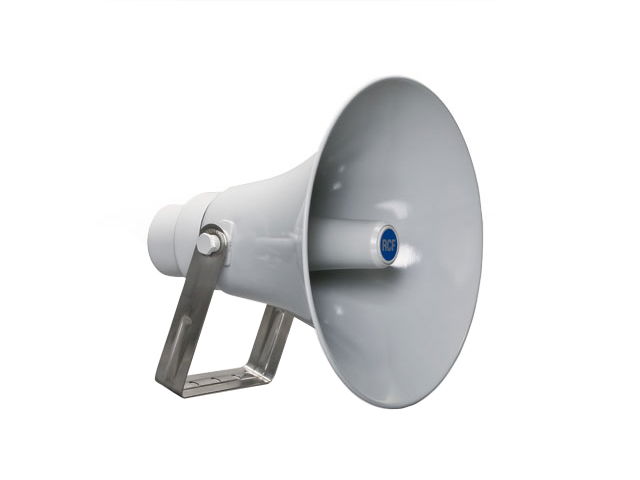

The HD 410/T are compact, lightweight and watertight horn speakers.
They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion.The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover.

Features:

• Built-in line transformer with multitap power selector on rear cover.
• Hi-pass filter for protecting driver against out-of-range low-freq.
• IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C.
• Aluminium flare with UV-stabilized autoextinguishing UL-HB ABS rear cover.
• Colour RAL 7035.
• Stainless-Steel mounting hardware.
• Double insulation design.


Acoustical Specifications:

• Type of speaker: Round, with driver unit and transformer
• Frequency Response: 180 Hz ÷ 7 kHz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 90°
• Power Handling: 50 W RMS
• Peak Power Handling: 75 W PEAK
• System Sensitivity: 112 dB
• Impedance: 16 ohm
• Protections: IP 66


Input Section:

• Input connector: 2 conductor cable, 1 meter lenght
• Constant voltage: 100 V , 70 V V
• Power Selection: 50 - 30 - 25 - 15 W (100V)


Cabinet:

• Hardware: Aluminium flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
• Colour: Grey


Physical Specifications:

• Height: 385 / 15.15 mm/inch
• Width: 385 / 15.15 mm/inch
• Depth: 410 / 16.14 mm/inch
• Net weight: 4.07 / 8.97 kg/lbs


Shipping information:

• Package height: 420 / 16.53 mm/inch
• Package width: 415 / 16.33 mm/inch
• Package depth: 430 / 16.92 mm/inch
• Shipping weight: 6.05 / 13.33 kg/lbs
