tlakový reproduktor obdélníkový venkovní, 25 W/8 ohm, 108 dB, HP filtr, 60°×130°, 310×165×320 mm, dvojitá isolace, IP66, plast, šedý

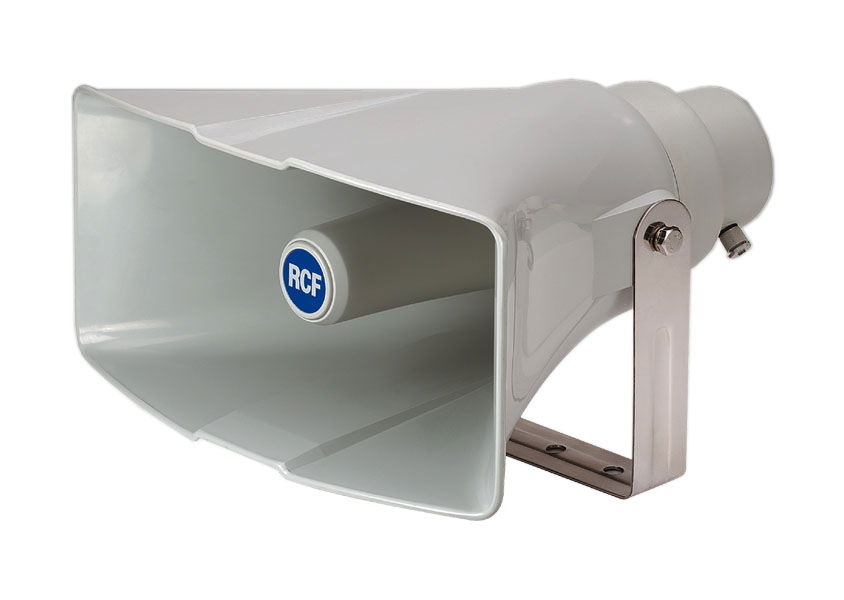

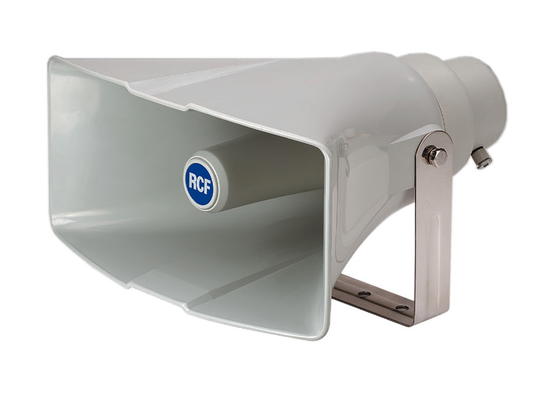

The HD 3216 are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover

Features:

• Hi-pass filter for protecting driver against out-of-range low-freq.
• IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C.
• UV-stabilized autoextinguishing UL-HB ABS plastic.
• Colour RAL 7035.
• Stainless-Steel mounting hardware.


Acoustical Specifications:

• Type of speaker: Rectangular, with driver unit without transformer
• Frequency Response: 250 Hz ÷ 10 kHz
• Max SPL @ 1m: 122 dB
• Horizontal coverage angle: 60°
• Vertical coverage angle: 130°
• Power Handling: 25 W RMS
• Peak Power Handling: 38 W PEAK
• System Sensitivity: 108 dB
• Impedance: 8 ohm
• Protections: IP 66


Input Section:

• Input connector: 2 conductor cable, 1 meter lenght


Cabinet:

• Hardware: ABS UL- 94HB; UV
• Stabilized
• Colour: Grey


Physical Specifications:

• Height: 165 / 6.49 mm/inch
• Width: 310 / 12.20 mm/inch
• Depth: 290 / 11.41 mm/inch
• Net weight: 1.94 / 4.27 kg/lbs


Shipping information:

• Package height: 190 / 7.48 mm/inch
• Package width: 305 / 12 mm/inch
• Package depth: 325 / 12.79 mm/inch
• Shipping weight: 2.61 / 5.75 kg/lbs
