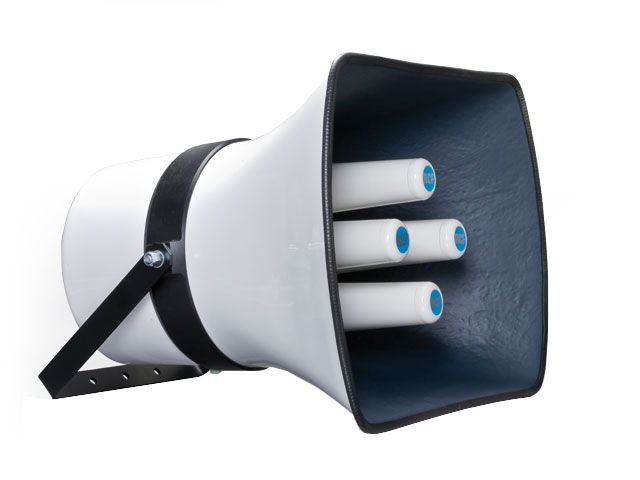

Horna obdelníková, pro 4× driver D 5076 a 4× trafo TD 507, 40°×20°, 620×475×560 mm, sklolaminát, šedá/černá

Fiberglass horn designed to withstand the most adverse weather conditions, offering high sound reproduction quality and sound pressure levels. A high level of efficiency and sound pressure can be obtained thanks to the use of four dynamic driver units.

Features:

• Long-throw horn speaker
• Body in RAL 9003 white fiberglass
• 1-3/8" W - 18 N threaded connector for driver unit
• Attachment bracket
• Watertight construction
• Use with up to 4 driver D 5076
• Use with up to 4 transforner TD 507 for costant voltage line


Acoustical Specifications:

• Type of speaker: Rectangular to be combined with 4 drivers model D 5076
• Frequency Response: 150 Hz ÷ 12 kHz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 60°
• Vertical coverage angle: 50°
• Power Handling: 200 W RMS
• Peak Power Handling: 300 W PEAK
• System Sensitivity: 101 dB
• Impedance: 16 ohm


Input Section:

• Input connector: 2 conductor cable, 1 meter lenght
• Constant voltage: 100 V , 70 V , 25 V V
• Power Selection: 50 - 25 - 12 - 6 W


Cabinet:

• Hardware: Body in fibreglass, RAL 9003 grey
• Colour: Grey


Physical Specifications:

• Height: 560 / 22.04 mm/inch
• Width: 475 / 18.7 mm/inch
• Depth: 620 / 24.4 mm/inch
• Net weight: 9.67 / 21.31 kg/lbs


Shipping information:

• Package height: 645 / 25.39 mm/inch
• Package width: 615 / 24.21 mm/inch
• Package depth: 895 / 35.23 mm/inch
• Shipping weight: 12.45 / 27.44 kg/lbs
