driver pro hornu H6045, 50 W/16 ohm, závit 1 a 3/8”

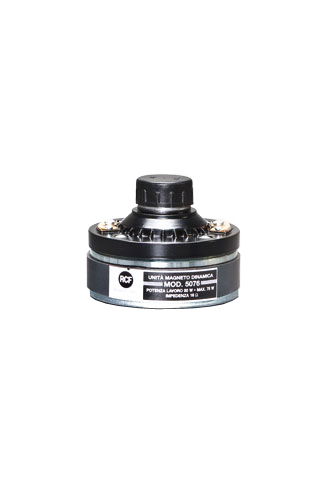

This magnetic unit fit the RCF horns model H 6045.
Different acoustical pressure measured are available for different horn configuraition, measured at nominal power output and at a distance of 1 mt. from the horn.

Features:

Pressure die-cast compression chamber

Acoustical Specifications:

• Frequency Response: 80 Hz ÷ 12 kHz
• Power Handling: 50 W RMS
• Peak Power Handling: 75 W PEAK
• Impedance: 16 ohm


Physical Specifications:

• Height: 75 / 2.95 mm/inch
• Width: 98 / 3.85 mm/inch
• Depth: 98 / 3.85 mm/inch
• Net weight: 1.65 / 3.63 kg/lbs


Shipping information:

• Package height: 85 / 3.34 mm/inch
• Package width: 120 / 4.72 mm/inch
• Package depth: 110 / 4.33 mm/inch
• Shipping weight: 1.71 / 3.76 kg/lbs

• hmotnost brutto: 1,71
• hmotnost: 1,65
