obousměrný reproduktor válcový venkovní, evakuační BS5839-8, 2×5”, 12 W/100 V, 91 dB, 146×186 mm, IP55, kov, stříbrný

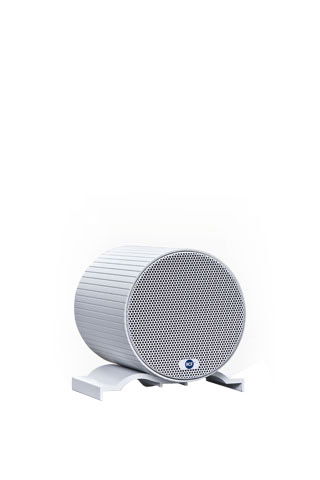

• Bidirectional sound projector with double loudspeaker, characterized by high acoustic performance, excellent design and compact dimensions.
• The BD 2412BS is ideal for train stations, underground stations, car parks, factories, warehouses, corridors and PA systems in general.


Features:

• Bidirectional sound projector with double loudspeaker, characterized by high acoustic performance, excellent design and compact dimensions
• Complyin with BS5839-8 stanard thanks to ceramic termination block, thermal fuse and internal fire-resistant cable
• IP 55 protection, suitable for outdoor use
• It's idea for train stations, underground stations, car parks, factories, warehouses, and PA systems in general
• Continuous nominal power: 12/24 W ([100 V]: 12-6-3 W - [70 V]: 12-6-3 W)

Acoustical Specifications:

• Type of speaker: Projector
• Frequency Response: 150 Hz ÷ 20 kHz
• Max SPL @ 1m: 102 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 120°
• Power Handling: 12 W RMS
• Peak Power Handling: 24 W PEAK
• System Sensitivity: 91 dB
• Protections: IP 55 BS 5839-8


Transducers:

• Speaker: 2 x 5"

Input Section:

• Input connector: 4 conductor cable
• Constant voltage: 100 V / 70 V V
• Power Selection: 12 - 6 - 3 (100 V)


Cabinet:

• Hardware: Aluminium
• Colour: Grey
• Grille: Steel


Physical Specifications:

• Height: 146 / 5.74 mm/inch
• Width: 146 / 5.74 mm/inch
• Depth: 186 / 7.32 mm/inch
• Net weight: 3.2 / 7.05 kg/lbs


Shipping information:

• Package height: 185 / 7.28 mm/inch
• Package width: 175 / 6.88 mm/inch
• Package depth: 220 / 8.66 mm/inch
• Shipping weight: 3.7 / 8.15 kg/lbs
