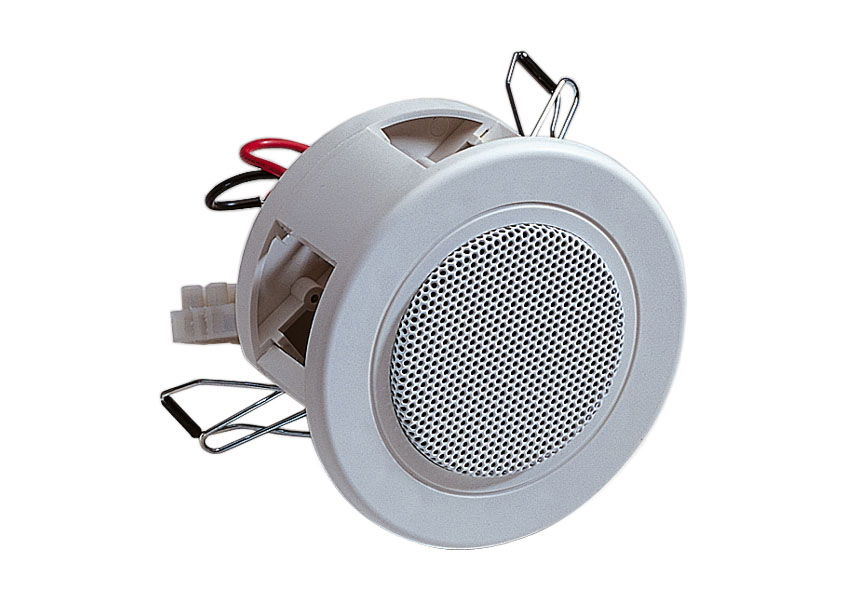

podhledový reproduktor kruhový “Spotlight”, 2,5”, 6 W/100 V, 89 dB, 104×91 mm, 6 mm nad povrch, otvor 92 mm, plast/kov, bílý

The HS Series are fullrange speakers that can be flush-mounted in false ceilings like normal halogen spots used in lighting systems.
Quick and easy installation in false ceilings of varying thickness thanks to the adaptable spring hooks and the standard size of the mounting hole.


Features:

• For paging and background music
• Music power / RMS: 24 / 6 W
• 2.5" extended range loudspeaker
• High-pass filter for use with optional subwoofer
• Low impedance (8ohm) or 100V
• Built-in multi-tapped transformer for 100/70V constant voltage connection
• Ease of installation in standard holes used for lightspots


Acoustical Specifications:

• Type of speaker: Ceiling
• Frequency Response: 220 Hz ÷ 17 kHz
• Max SPL @ 1m: 102 dB
• Horizontal coverage angle: 170°
• Vertical coverage angle: 170°
• Power Handling: 6 W RMS
• Peak Power Handling: 24 W PEAK
• System Sensitivity: 89 dB
• Impedance: 8 ohm


Transducers:

• Speaker: 2.5"

Input Section:

• Input connector: 3-pin terminal strip
• Constant voltage: 100 V / 70 V
• Power Selection: 6 - 3 W (100 V)


Cabinet:

• Hardware: Plastic material
• Colour: White / Gold / Chrome
• Grille: Steel


Physical Specifications:

• Height: 91 / 3.58 mm/inch
• Width: 104 / 4.09 mm/inch
• Depth: 104 / 4.09 mm/inch
• Net weight: 0.58 / 1.27 kg/lbs


Shipping information:

• Package height: 110 / 4.33 mm/inch
• Package width: 130 / 5.11 mm/inch
• Package depth: 130 / 5.11 mm/inch
• Shipping weight: 0.69 / 1.52 kg/lbs
