6zónová řídicí jednotka, 6 tlačítek s LED pro předvolbu hudby do zón, 6 tlač. s LED pro zónování hlášení, tlač. s LED General Call, povelové relé, konfigurace: 1kanál, 2kanál hudba/řeč, 6kanál, napáj. 230 Vst nebo 24 Vss, 483×44×160 mm, 19”/1 U

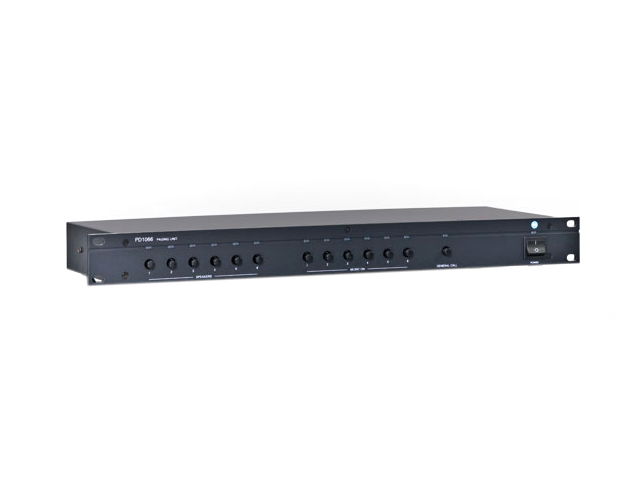

The PD 1066 unit enables selective voice / music switching in 6 audio zones by means of 6 incorporated "Speakers" relays.
These relays can be controlled by keys on the front panel or by remote control (e.g. from the BM 3067 microphone stand). The unit can be connected to a maximum of two amplifiers.

Features:

• 6 paging keys (one per zone)
• 6 music on / off keys (one per zone)
• General call key (to switch all the 6 paging relays on)
• All the front panel keys have an LED
• 2 possibile wiring modes:
• Amplifiers after the PD 1066 switching unit


Amplifier specifications:

• Max Power applicable to each zone: 500 W ( 100 V)
• Max Power applicable to each zone: 350 W ( 70 V)
• Max Power applicable to each zone: 250 W ( 50 V)
• Max Power applicable to each zone: 125 W ( 25 V)


Input section:

• Inputs for amplifiers: 2
• Speakers realys: 6
• Alarm AUX realy: 1 relay with 2 switching contact (max contact capacity 5 A)


Output section:

• Output Loudspeaker Constant voltage: 100 V ; 70 V ; 50 V ; 25 V
• Remote Control: 10 ÷ 24 V dc
Outputs for speakers: 6


Power requirement:

• Operating voltage: 220÷240 / 110÷120 ~ 50 / 60 V~ Hz
• Power (consumption): 10 VA
• DC power supply: 24 Vdc


Physical specification:

• Height: 44 / 1.73 mm/inch
• Width: 483 / 19.01 mm/inch
• Depth: 160 / 6.29 mm/inch
• Net Weight: 2.8 / 6.17 Kg/Lbs


Shipping information:

• Package height: 65 / 2.55 mm/inch
• Package width: 530 / 20.86 mm/inch
• Package depth: 240 / 9.44 mm/inch
• Shipping Weight: 3.05 / 7.71 Kg/Lbs
