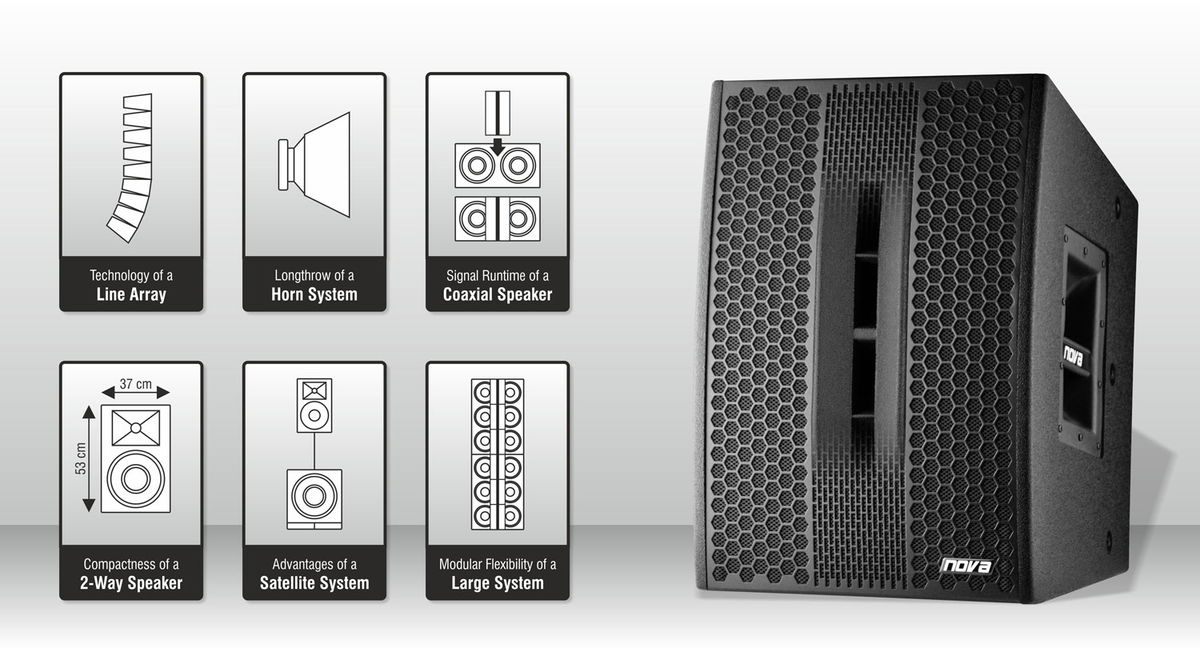

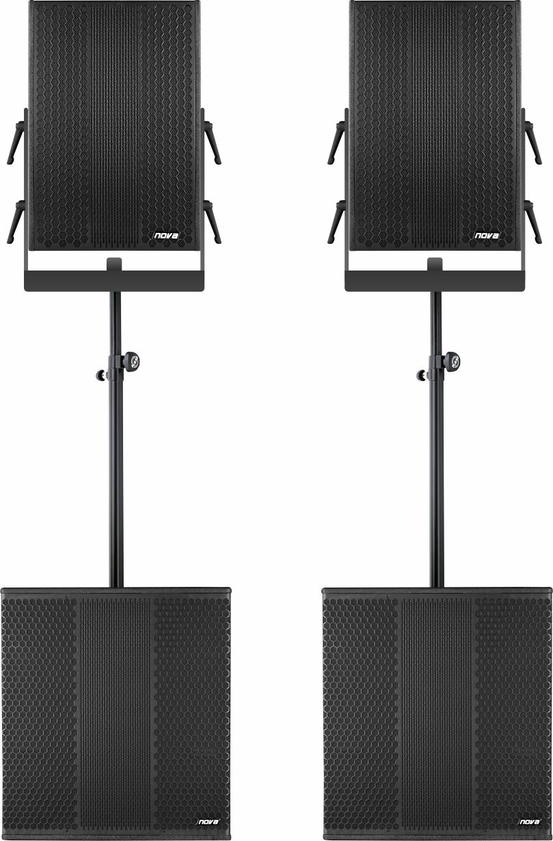

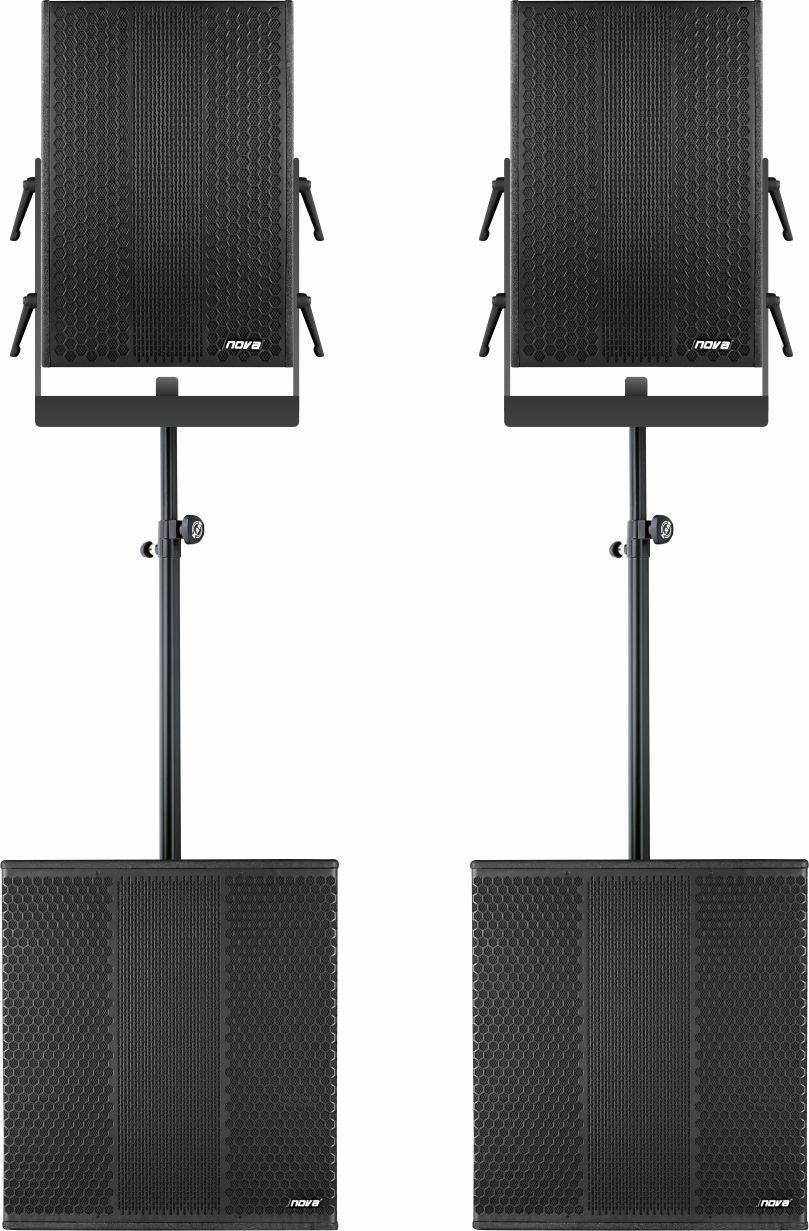

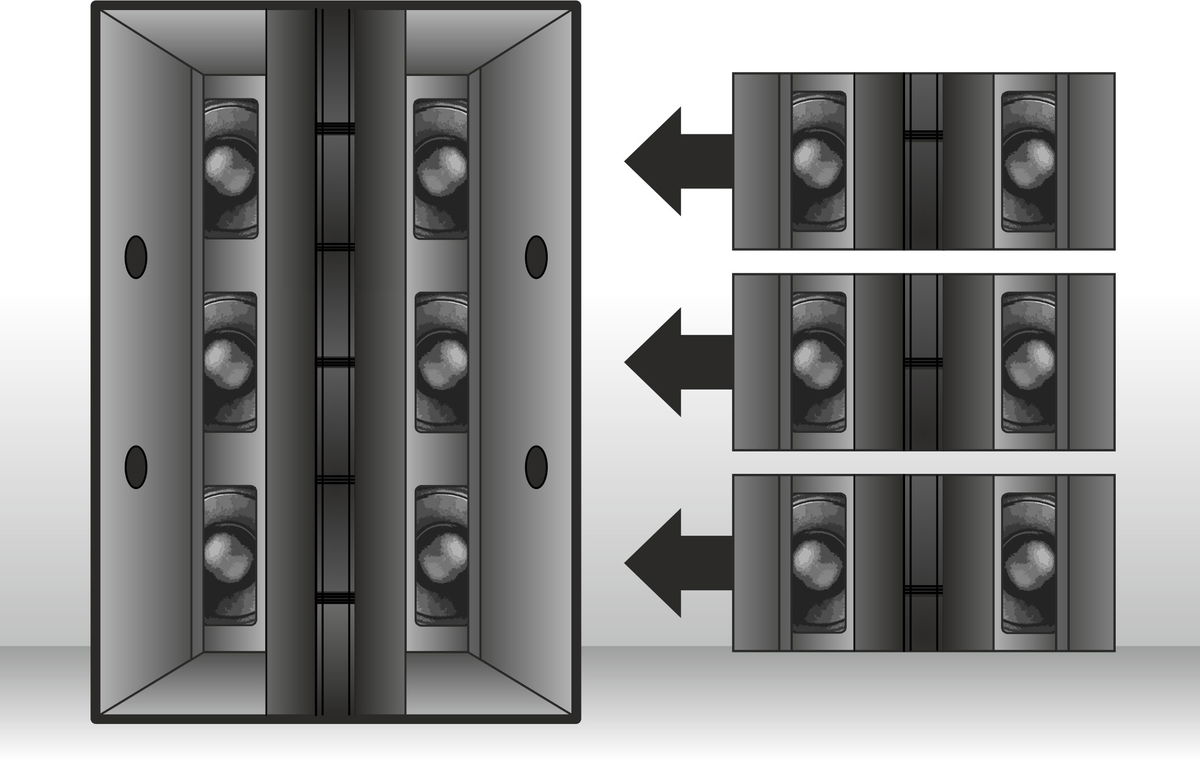

Aktivní zvukový systém o celkovém výkonu 4.100W RMS. Skládá se ze dvou satelitních reproboxů M5, jednoho aktivního subwooferu M318SUB, jednoho pasivního subwooferu M18SUBP a dvou U-držáků satelitů (distanční tyče nejsou součástí). MAXLINE 801 PLUS je založen na 801 BASIC systému. Rozšíření o subwoofer poskytuje větší tlak v nízkých frekvencích a umocňuje poslechových zážitek. Pasivní subwoofer M18SUBP je připojen k aktivnímu M318SUB přes 4-pinové Speakon konektory. M5 3-in-1 Line-Array Speaker - FUSION concept combines 6 system types in one cabinet - 6 x 5" + 3 x 1,75" transducers (2-way passive) - Reliable sound pressure from 100 Hz up to 20 kHz - TRIPLEX technology (three speakers in one housing) - Highly efficient waveguide (based on ELITE series) - Dual coaxial construction for perfect signal runtime - Hornloaded 136 dB sound pressure (long throw operation) - High load capacity of 800 W (RMS) / 1.600 W (program) - 100 horizontal coverage (large-area sound distribution) - 22 vertical coverage (precise, low-reflection) - Compact design for less loading volume (37 cm width) - Plug & Play concept for tripod or flown operation - Easy handling and innovative accessories - Scalable system (3 speakers = 9 line array units) - Nearly unlimited applications M318 SUB Aktivní subwoofer - 3 amplifier channels 2 x 800 W (4 ohms) + 1 x 2.500 W (4 ohms) RMS - Speaker management system with IIR and FIR filters - Touchscreen display for quick access and full control - Pre-installed DSP settings (plug and play) - Outstanding powerful sound - Precise limiters (speaker protection) - Hybrid input stage for analog and digital sources - Connection for passive subwoofer - Universally applicable (eg with 12" 2-way cabinets) - Wide range of accessories M18SUBP Pasivní subwoofer - High power capability (1.600 W RMS / 8 ohms) - Compact, functional and discreet design - Outstanding powerful sound (29mm XMax) - Universally applicable (eg with 12" 2-way cabinets) - Wide range of accessories Více info ZDE

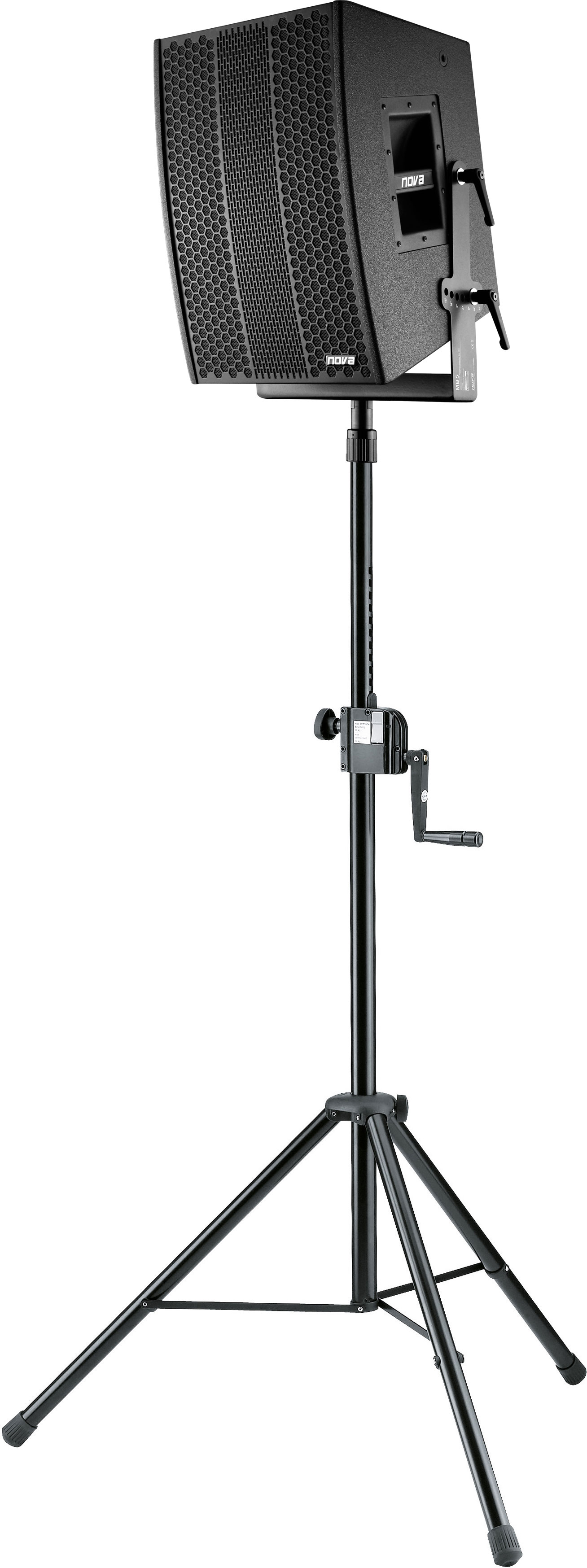

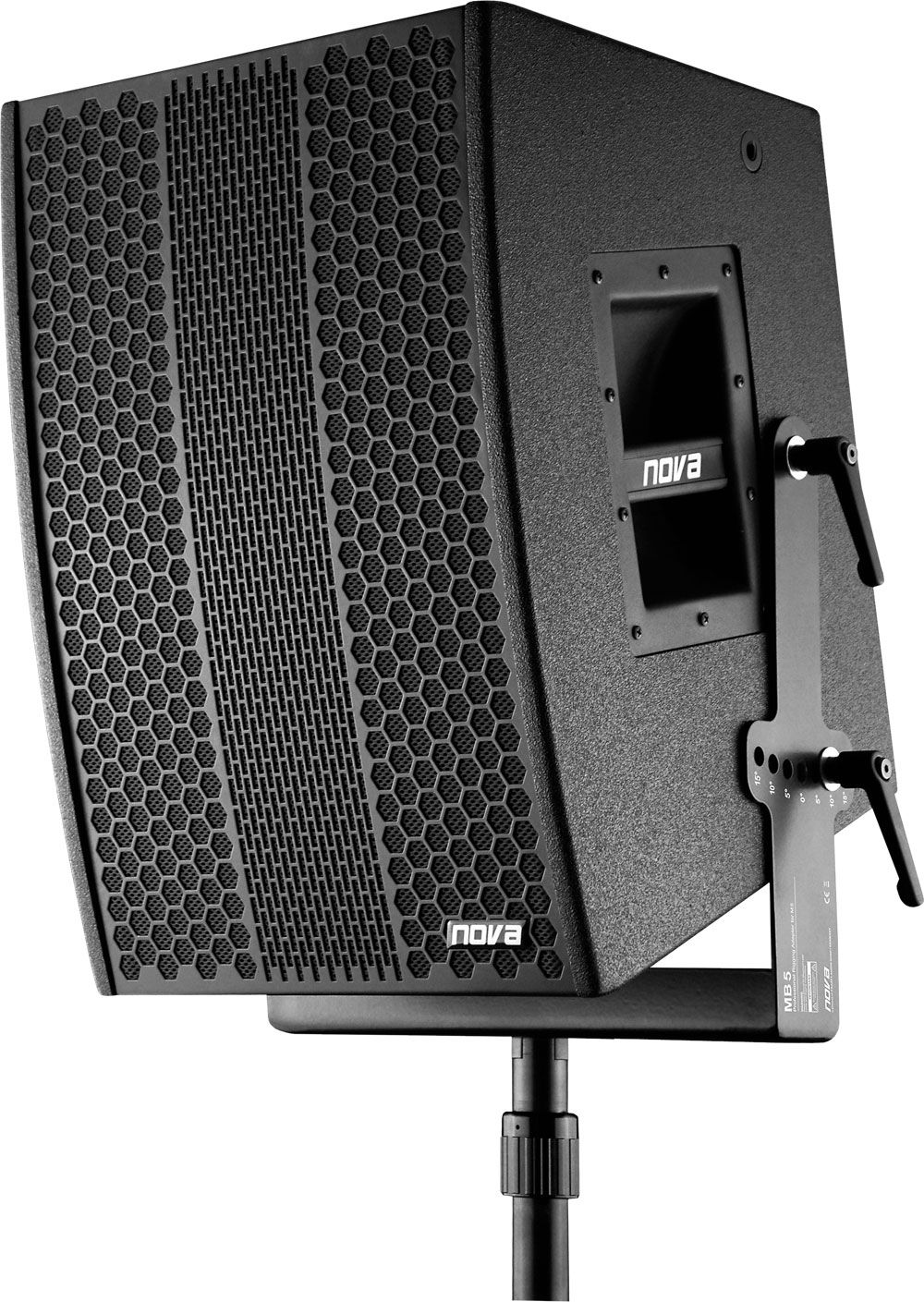

M5

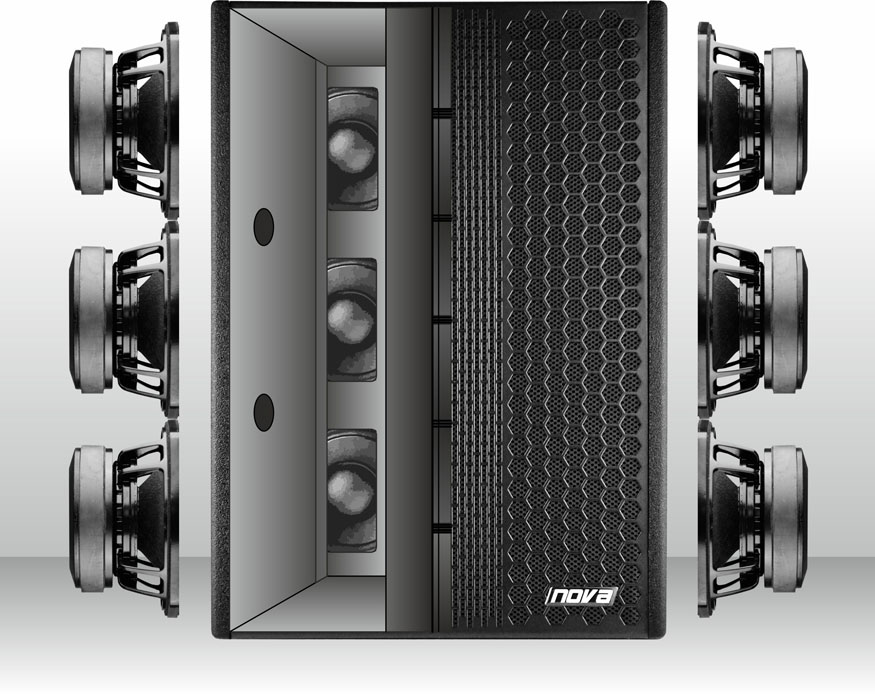

System Type: 6 x 5", two-way, compact line array
Frequency Response (-10 dB): 100 Hz - 20 kHz
Frequency Response (3 dB) : 110 Hz - 20 kHz
Coverage Pattern: 100 x 22 nominal
HF Horn: 3 x planar waveguide horn
Crossover Modes: Passive
Nom. impedance: 6 ohms
Rated Power (Cont. / Program): 800 W / 1.600 W
Maximum SPL: 136 dB SPL peak
System Sensitivity (1w/1m): 104 dB SPL
LF Driver: 6 x NOVA 5/150EL-8
HF Driver: 3 x NOVA TPM4-1750 (1.75" VC)
Suspension / Mounting: 6 x M10 mounting points
Transport : 4 x integrated handles
Connectors: 2 x Neutrik Speakon NL4
1+/1- (2+/2- linked input to output)
Dimensions (W x H x D): 370 mm x 530 mm x 375 mm
Net Weight: 27 kg

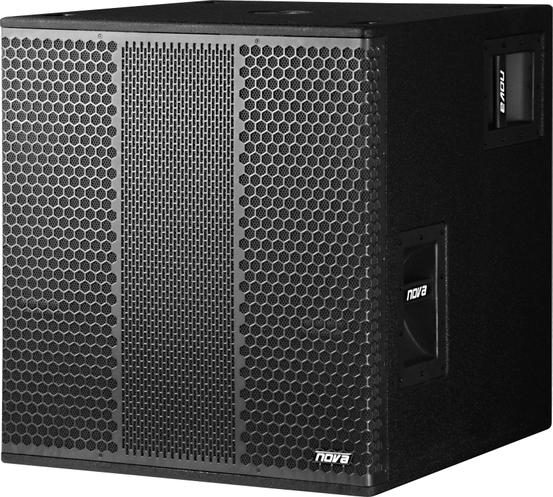

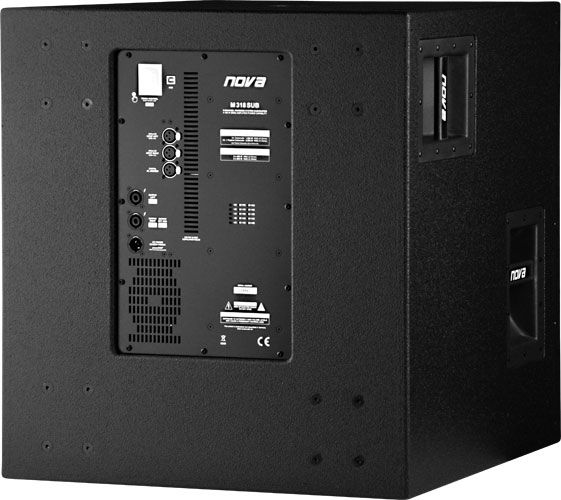

M318SUB
System Type: 1 x 18", bass-reflex, 3-ch. self-powered
Frequency Response (-10 dB): 28 Hz - 500 Hz
Frequency Response (3 dB) : 34 Hz - 300 Hz
Coverage Pattern: Omni

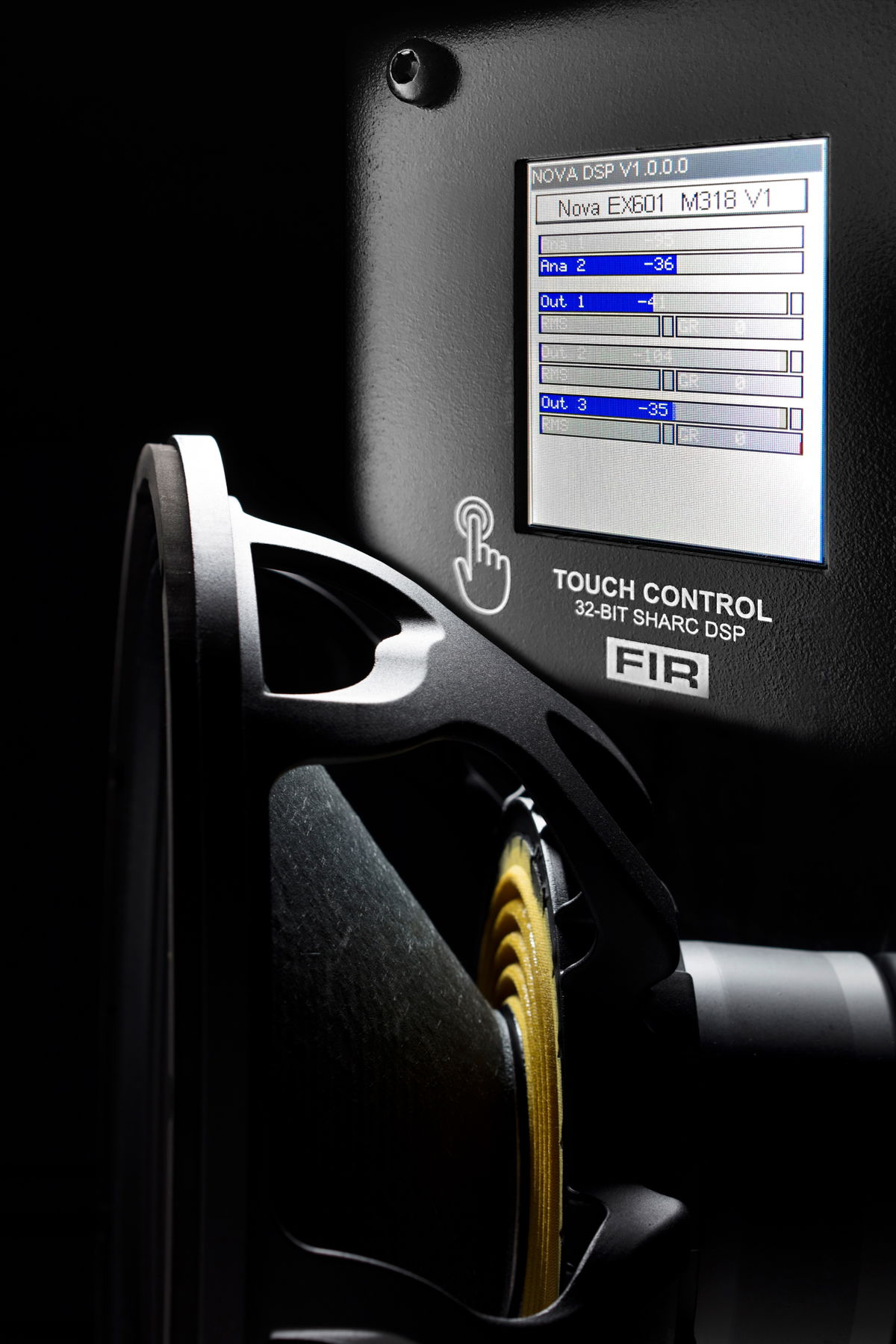

Crossover Modes: Int. 3-channel DSP with FIR filters
Rated Power (Cont. / Program):2 x 800 W + 1 x 2.500 W (4 ohms)
Maximum SPL: 138 dB SPL peak
System Sensitivity (1w/1m): 99 dB SPL

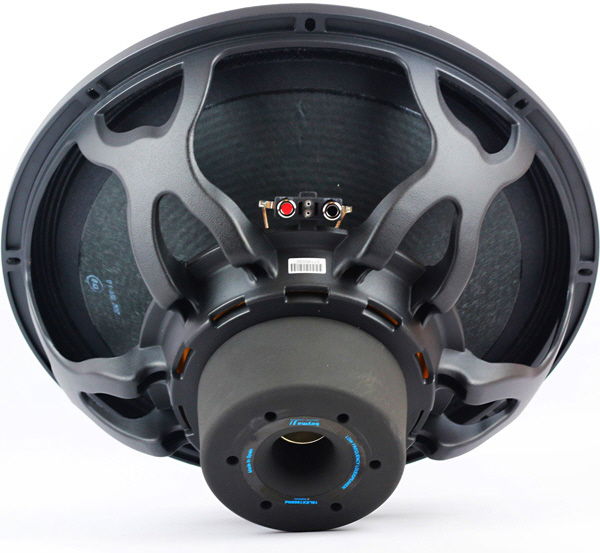

LF Driver: 1 x BEYMA 18LEX1600/ND
Suspension / Mounting: M20 pole socket
6 x M8 mounting points
Transport : 4 x integrated handles
Connectors: 3 x XLR input (analog + AES digital)
2 x Neutrik Speakon NL4, USB
Dimensions (W x H x D): 590 mm x 650 mm x 650 mm
Net Weight: 42.5 kg

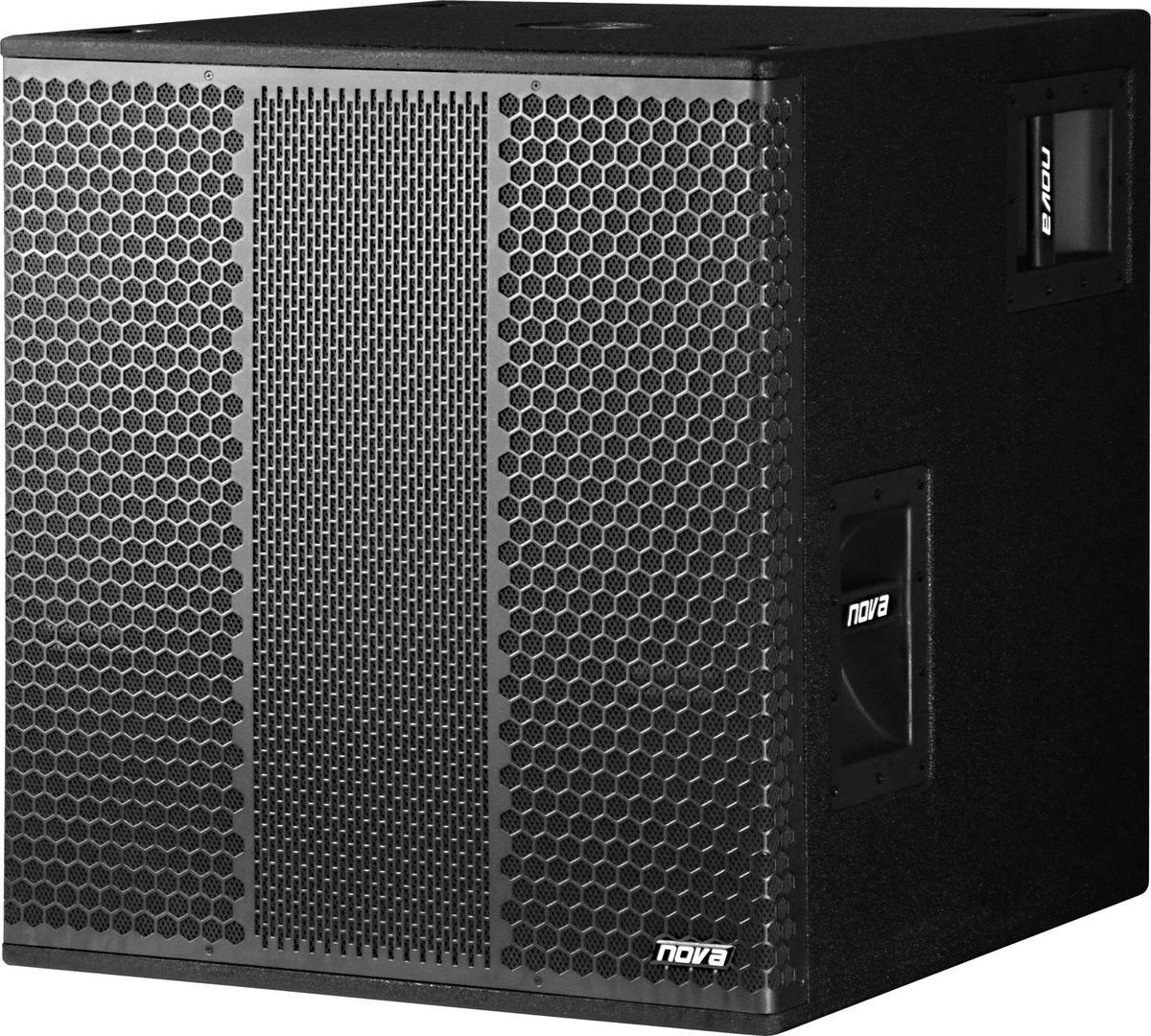

M18SUBP
System Type : 1 x 18", bass-reflex, passive
Frequency Response (-10 dB) : 28 Hz - 500 Hz
Frequency Response (3 dB) : 34 Hz - 300 Hz
Coverage Pattern: Omni
HF Horn: n/a
Crossover Modes: External signal processing
Nom. impedance: 8 ohms
Rated Power (Cont. / Program): 1.600 W / 3.200 W
Maximum SPL: 138 dB SPL peak
System Sensitivity (1w/1m): 99 dB SPL
LF Driver: 1 x BEYMA 18LEX1600/ND
Suspension / Mounting: M20 pole socket
6 x M8 mounting points
Transport : 4 x integrated handles
Connectors: 2 x Neutrik Speakon NL4
2+/2- (1+/1- linked input to output)
Dimensions (W x H x D): 590 mm x 650 mm x 650 mm
Net Weight: 39 kg
